For Sale - UM - 3785 - Schiavi 8 Colour CI Flexo Press

Specification

Reference Numbers

UM - 3785

Product

Schiavi 8 Colour CI Flexo Press

Location

Europe

Product Details

Model: EF 40-20
- Year: 2004/2005
- Gearless: Yes
- Sleeve change: Yes
- Computer supervision: Yes
- Web width: 1,250 mm
- Print width: 1,200 mm
- Print repeat: 330-750 mm
- Unwinder type: Turret automatic
- Reel unwinder diameter: Max. 800 mm
- Rewinder type: Double turret
- Reel rewinder diameter: Max. 800 mm
- Drying: 2 zones, 4 fans, 2 gas burners, and tunnel 5 mt.
- Video camera: Decosystem - with BA code and Defect control
- Web guides: Fife before printing
- Material: LLDPE, PET, BOPP, BOPA, Metallized Films, Paper
- Camber doctor blades number: 10
- Ink pumps: 12
- Sleeves number: 377
- Aniloxes number: 19
- Printing repeat:
35 sleeves x 330 mm, 12 sleeves x 340 mm, 12 sleeves x 350 mm; 12 sleeves x 360 mm, 12 sleeves x 370 mm, 12 sleeves x 380 mm, 12 sleeves x 390 mm, 20 sleeves x 400 mm, 12 sleeves x 420 mm, 12 sleeves x 430 mm, 12 sleeves x 440 mm, 12 sleeves x 450 mm, 12 sleeves x 460 mm, 12 sleeves x 470 mm, 12 sleeves x 480 mm, 12 sleeves x 490 mm, 20 sleeves x 500 mm, 12 sleeves x 520 mm, 12 sleeves x 530 mm, 12 sleeves x 540 mm, 12 sleeves x 550 mm, 12 sleeves x 560 mm, 12 sleeves x 570 mm, 12 sleeves x 580 mm, 12 sleeves x 590 mm, 12 sleeves x 600 mm, 12 sleeves x 620 mm, 12 sleeves x 640 mm, 9 carriers x 500 mm
- Anilox: 5 pcs 320L-V05; 2 pcs 260L-V05; 2 pcs 160L-V07; 1 pc 180L-V07; 5 pcs 100L-V12; 2 pcs 80L-V15, 1 pc 60L-V18, 1 pc 50L-V16
- Automatic air recirculation system with LEL control
- Corema chill refrigerator
- Automatic wash up system

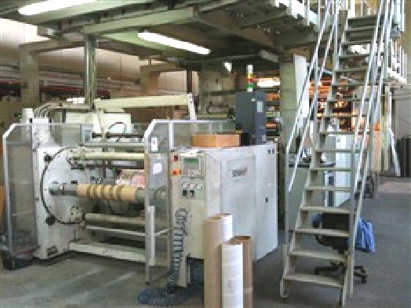

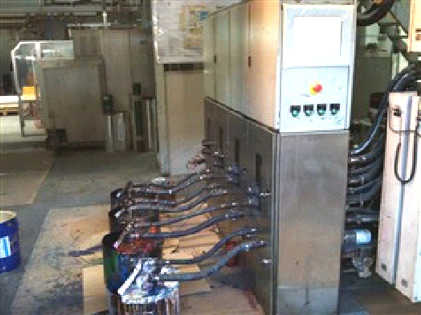

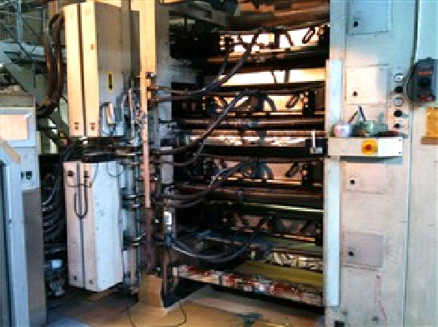

(For images, please see next pages)
