For Sale - UM - 5444 - Netstal 240 Ton Injection Moulder

Specification

Reference Numbers

UM - 5444

Product

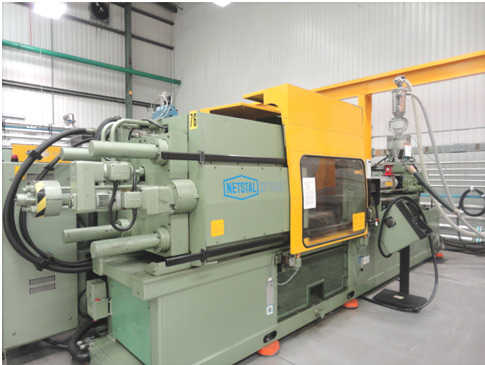

Netstal 240 Ton Injection Moulder

Year Of Manufacture

1994

Location

UK

Product Details

Model: HP 2400 H - 870 Sycap Graphtrack
- Screw diameter: 50 mm
- Shot weight (P/S): 377 gr
- Calculated injection: 393 cm 3
- Injection pressure: 2209 bar
- Platen sizes: 970 x 840 mm
- Distance between tie bars: 560 x 560 mm
- Min. mould height: 460 mm
- Max mould height: 800 mm
- Mould opening stroke: 510 mm
- Max daylight: 1310 mm
- Ejector stroke: 200 mm
- Controls: Graphtrack
- Air circuit: 8
- Total installed power: 69 kw
- Length: 7300
- Width: 2000
- Height: 2500
- Weight: 15,000 kg
- Hydraulic nozzle
- Hydraulic accumulator
- Robot interface
- Hours: 77,000
- Volts: 415 / 50 hz

(For images, please see next pages)
