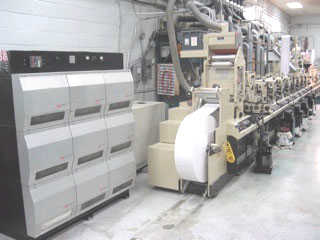

For Sale - UM - 5582 - 8 Color UV or Waterbase Flexo Printing Machine
Reference Numbers
UM - 5582Product
8 Color UV or Waterbase Flexo Printing MachineYear Of Manufacture
2000Location
Canada
- Mark Andy 4200-10F
- 10 inch wide
- 40" unwind
- Double sided Corotec Corona treater
- Herbert double sided web cleaner
- Automatic register system (Print to print and print to die)
- 1 print unit with web reversing gear box and enclosed doctor blade assembly (for printing on either side without using turn bars)
- UV and air drying on all 8 print stations
- Movable laminator
- Movable turn bar
- I.Kela Rotary hot foil stamping unit
- Vits-America three stream foil saver unit
- BST Promark Handy Scan Video and monitor
- 8 peristaltic ink pumps
- Dual slot Die-cutting module with die handling hoist
- 24" or 40" rewind + conveyor with static eliminator
- Minimum print repeat: 5.5"
- Maximum print repeat: 24"

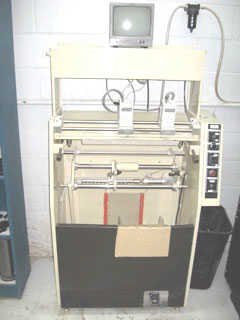

- PM-160 plate mounter with video camera

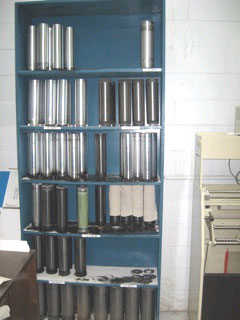

- Large quantity of ceramic anilox rolls and hardened plate cylinders
- Prepped for in-line variable ink-jet imaging (Domino ink-jet heads available if required)
- 1/8" CP primary gearing
- 230volt, 3 phase, 60Hz
(For images, please see next pages)
