For Sale - UM - 6706 - Galileo Vacuum Metallizer

Specification

Reference Numbers

UM - 6706

Product

Galileo Vacuum Metallizer

Year Of Manufacture

1986

Location

Australia

Product Details

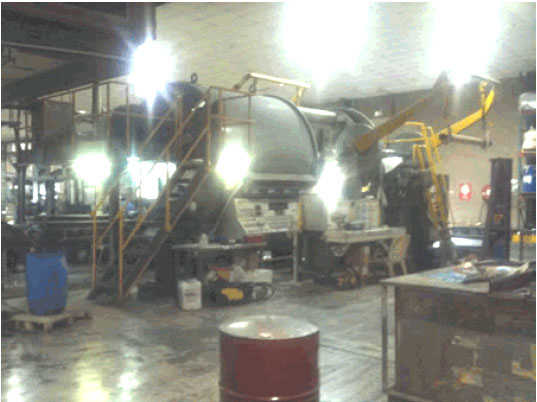

Used Galileo Vacuum Metalizer
Model: C160 / AL130
- Equipped with a 1250 mm maximum diameter single position unwind w/ 6" shaft
- Independent wire feed for 16 boats
- 400 mm chill roll
- Cryogenic unit for evaporation
- 16 boats
- Camplus plasma treater
- 1250 mm maximum diameter single position rewind
- roll loading and unloading system to speed up process
- Web Width: 1700 mm (67 in)
- Unwind: Single Position
- Rewind: Single Position
- Speed: 480 MPM (1575 FPM)
- Max. Diameter 1250 mm (49 in)
- Max. Diameter: 1250 mm (49 in)
- No. of Boats: 16
- Metal Deposited: Aluminium
- Drive System: DC

(For images, please see next pages)
