For Sale - UM - 6903 - Uteco 7 Color CI Flexo Printing Machine

Specification

Reference Numbers

UM - 6903

Product

Uteco 7 Color CI Flexo Printing Machine

Year Of Manufacture

1987

Location

Europe

Product Details

Model: Quarz 610
- Web width (mm): 1450
- Print width (mm): 1400
- Min print repeat (mm): 320
- Max print repeat (mm): 950
- Unwinder type: Shaftless
- Max reel diameter unwinder (mm): 1200
- Rewinder type: Surface
- Max reel diameter renwinder (mm): 1000
- Drying: Gas dryer and hot water dryer
- Video camera: yes, not used
- Inking system: 4 peristaltic pumps
- Anilox: 6
- Print cylinders: 20

Additional informations:
- Material: Paper 25 to 350 gr/m
- Cellophane 26 to 80 gr/m
- Central Drum 6 colours + 1colour Down Stream unit (for printing or coating) 10 MM gear pitch
- In line slitter-rotative knifes Helios, Edge guide before printing
- 6 ceramic anillox rolls
- Print cylinders: 2x360-16x520-2x520 air mandrels with sleeves
- 2 chill rollers, chill roller unit, Tricool
- Mechanical speed: 250 m/min.

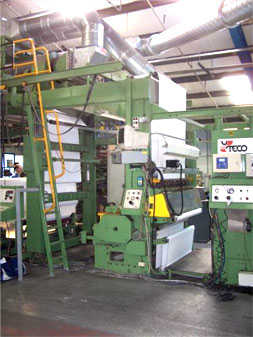

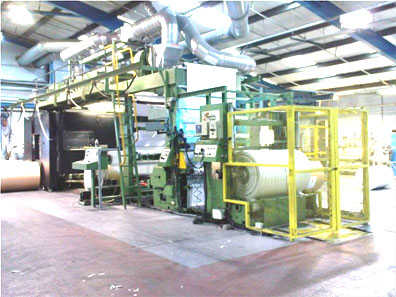

(For images, please see next pages)
