For Sale - UM - 6930 - Uteco 8 Color CI Flexo Printing Machine

Specification

Reference Numbers

UM - 6930

Product

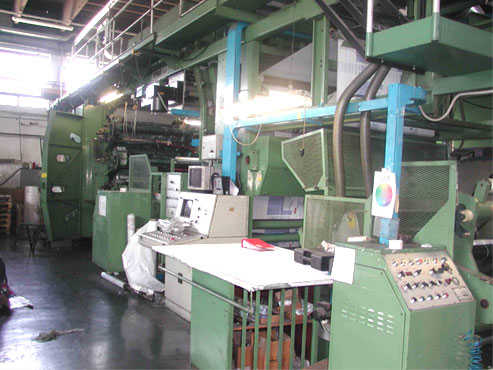

Uteco 8 Color CI Flexo Printing Machine

Year Of Manufacture

1995

Location

Europpe

Product Details

Model: Amber 808
- Web width (mm): 1550
- Print width (mm): 1500
- Min print repeat (mm): 340
- Max print repeat (mm): 850
- Unwinder type: Turret automatic
- Max reel diameter unwinder (mm): 1000
- Rewinder type: Turret automatic
- Max reel diameter renwinder (mm): 1000
- Drying: 2 zones 4 fans -4 mt tunnel-Steam heat exchangers

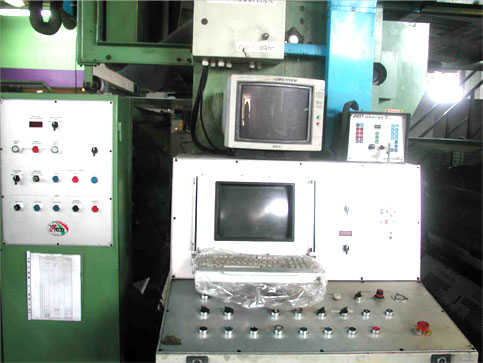

- Videocamera: Yes
- Corona treatment: Ferrarini benelli suitable for metallized
- Web guides: Fife in and out
- Vyscosity control: 8 Grafikontrol

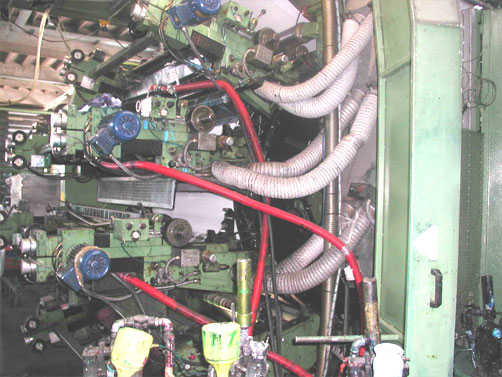

- Inking system: 8 Pneumatic with tanks
- Anilox: 17
- Print Sleeves: 32
- Print cylinders: 136

Additional informations:
- Gear pitch 5mm
- Material: all plastic films and laminated
- Motorized print station positioning with repeat preset, preregister, motorized long.
- Registers, Driven Infeed roller with automatic web tenbsion control, Slitter in line Helios banana roller
- Ceramics anilox : 17 ( 1x 500, 2x300, 6x260, 2x200, 2x120, 1x110, 2x100, 1x80 ) ,
- Cylinders: 136 (8x320,330,340,360,390,410,440,470,490,520,540,560,580,590,610,650,690)

(For images, please see next pages)
