For Sale - UM - 6960 - Bielloni 3 Layer Cast Film Line

Specification

Reference Numbers

UM - 6960

Product

Bielloni 3 Layer Cast Film Line

Year Of Manufacture

1998

Location

Europe

Product Details

- Film structure: ABC
- Material: stretch-film
- Film width (mm): 1500
- Extruder 1 layer ref: A
- Screw diameter: 65
- Extruder 2 layer ref: B
- Screw diameter: 100
- Extruder 3 layer ref: C
- Screw diameter: 65
- Die width (mm): 2000

Chill roll unit:
- Head type: OM 20 RB BA
- Flexlip 25 mm
- feed block
- Inox airknife
- Thickness 15 to 50 mm
- 2 chill rolls 1st 500 mm, 2nd 280 mm
- Thickness control system: Automatic thickness control and electronic system
- Rewinder max reel diameter (mm): 600

Additional informations:
- traversing group Erhardt + Leimer with 2 rollers 148 mm
- Time for complete cycle automatic change: 25"
- 1 granulator TRIA 47-30/CN SE
- Rewinder tower: 4 shafts
- With 3 rolls 500 mm
- Fixed edge: electronic command and control
- Electronic cabinet
- Panel control
- Industrial computer with color monitor
- Main rack

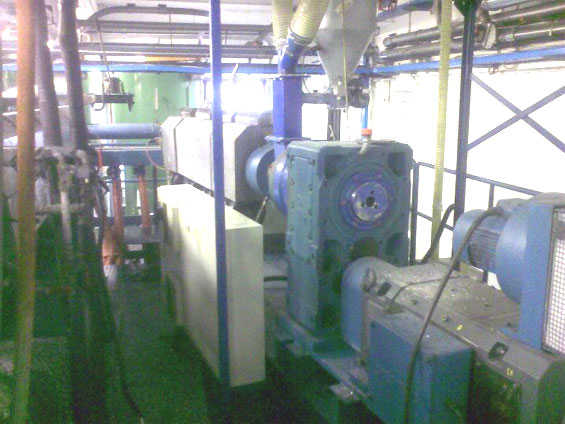

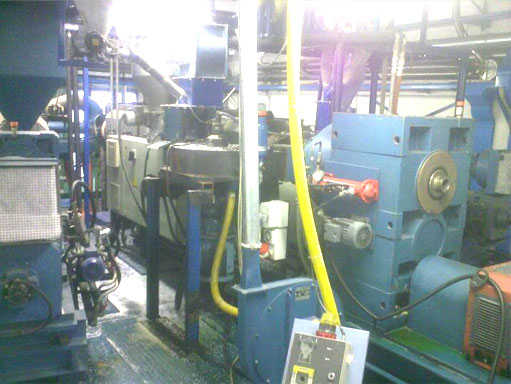

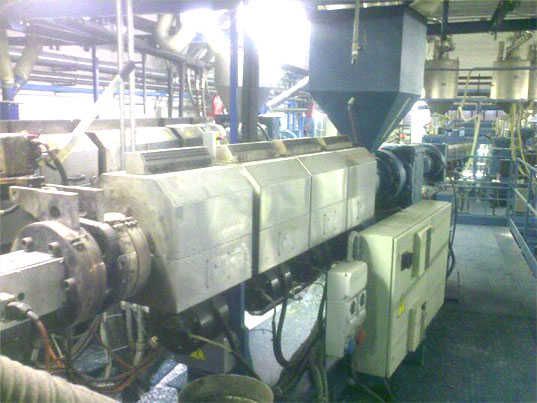

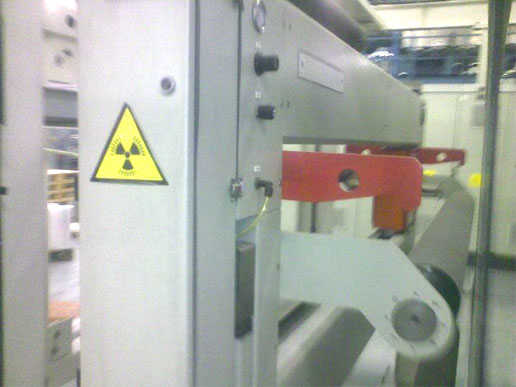

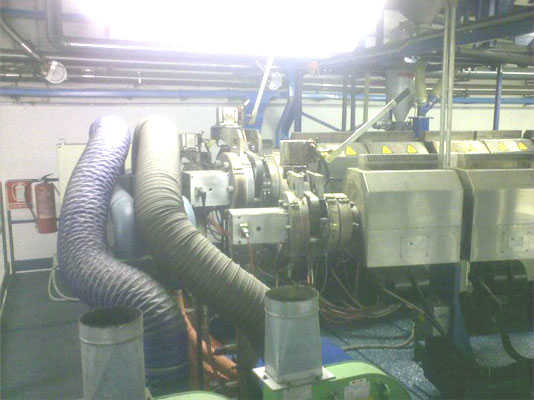

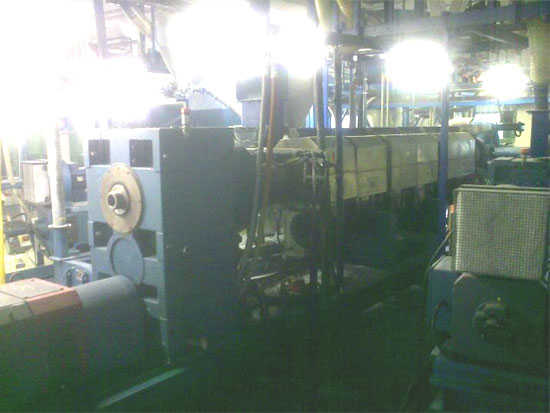

(For images, please see next pages)
