For Sale - UM - 6961 - Altek 3 Layers Cast Film Line

Specification

Reference Numbers

UM - 6961

Product

Altek 3 Layers Cast Film Line

Year Of Manufacture

2002

Location

Europe

Product Details

- Film structure: ABC
- Material: stretch
- Film width (mm): 1000
- Extruder 1 layer ref: A
- Screw diameter: 80
- Extruder 2 layer ref: B
- Screw diameter: 120
- Extruder 3 layer ref: C
- Screw diameter: 80

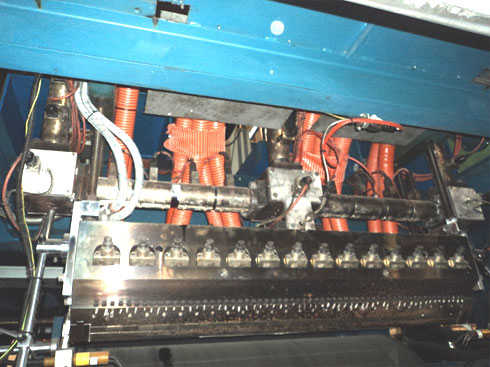

- Die width (mm): 1500

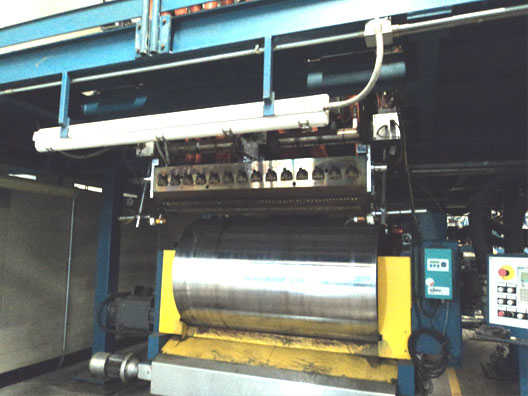

Chill roll unit:
- Thickness range 15 to 50 micron
- Flexlip 25 mm
- 2 chill rolls
- 1st 1000 mm and 2nd 450 mm
- feed block airknife
- Thickness control system: electronic system L13 RB cn BA

Additional informations:
- Time for complete cycle automatic change: 30"
- Rewinder tower: 4 shafts
- 2 rolls 400 to 500 mm
- Electric cabinet
- PC control with color monitor LCD TFT at 15"
- Speed: 600 m / min
- Output: 450 m / min
- Electronic heating extruders

(For images, please see next pages)
