For Sale - UM - 7527 - Camvac Thetford Vacuum Metallizer

Specification

Reference Numbers

UM - 7527

Product

Camvac Thetford Vacuum Metallizer

Year Of Manufacture

1984

Location

USA

Product Details

- Web width: 2794 mm (110 inches)
- Unwind: Single Position
- Rewind: Single Position
- Speed: 610 MPM (2000 FPM)
- Max. Diameter: 1143 mm (45 inches)
- Max. Diameter: 1143 mm (45 inches)
- Metal deposited: Aluminum
- Drive system: Eurotherm digital drive system

Notes:

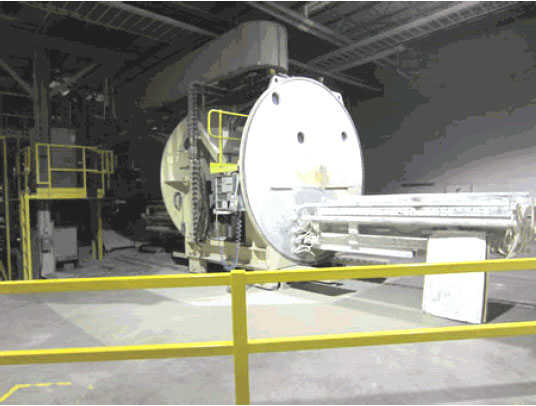

- Used Camvac Thetford Vacuum Metallizers, a twin source evaporative vacuum metallizers for minimal down time, equipped with a 45" maximum diameter single position unwind, dancer tension control, optical monitor beam for deposition control,
eight (8) Stokes 412 roughing pumps with Edwards EH 4200 blowers, three (3) Varian NHS 35 diffusion pumps, two (2)

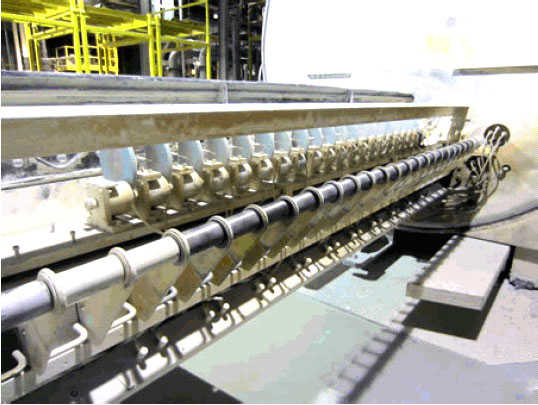

Varian 305B vapor boosters, two (2) Stokes 149 backing pumps, Polycold PFC 1100 HC, Polycold 1100 ST, Polycold PFC 1100, inline slitting capability in the chamber, single chill roll, 45" maximum diameter single position rewind,
Allen-Bradley 502 PLC (drive control), Square D Symax 400 PLC (machine control), Eurotherm digital drive system

(For images, please see next pages)
