For Sale - UM - 7721 - 1500 mm Uteco Amber 8 Color CI Flexo Printing Machine

Specification

Reference Numbers

UM - 7721

Product

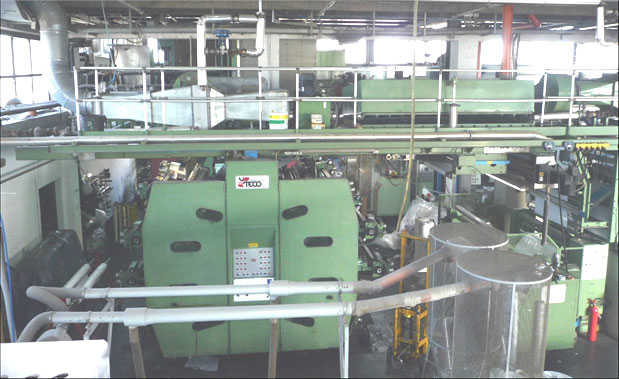

1500 mm Uteco Amber 8 Color CI Flexo Printing Machine

Year Of Manufacture

1995

Location

UK

Product Details

Amber Uteco 808
- Print width: 1500 mm
- Material width: 1550 mm
- IMPRES development: Min 320 mm 700 mm max (can reach 800 mm)
- Duplex unwinder diameter: max. 1000 with automatic
- Duplex rewinder max diameter: 1000 with automatic
- 2 electric hoists Thermoregulation drum (Corema when there does not work, if interest for the machine will fix it or new)

- drying 2 batteries with recirculation steam and heat recovery Ceramic anilox 17 (1 to 500 #, 300 # 2, 6 260, 2 200, 2 120 #, 1 110 #, 100 # 2, and 1 of 80)
Printing cylinders 8 cylinder sleeves ready to use type "STORK" double set of 8 gears (print with cliche 1.14 and 2.84) + September 4 vitrio fiber sleeves.
Cylinders (with pol. 1.14) 32-33-34-36-39-41-44-47-49-52-54-56-58-59-61-65-69 (total 136) maniche (with pol. 1.14) 42-45-48-66 (total 32)
- Raclas: 8 + 4 di spare Teflon Accessories 8 vacuum pumps,
- 4 bacinelle "Teflon parts. 8 viscosimeters GrafiControl,
- Preregistration monitoring system with preset development and printing, Leimer Herardt digital camera installed in 2009 Court / refil Helios 3 circular blades,
Court / refil blades, Tratamento crown F.B. for metallic materials, Calandra thermoregulated feeding, Fife Band Guyador income
Roller "banana" in income, Roller "banana" motorized output

(For images, please see next pages)
