Required - UM - 8023 - 2210 mm Kampf Duplex Center Slitter Machine

Specification

Reference Numbers

UM - 8023

Product

2210 mm Kampf Duplex Center Slitter Machine

Year Of Manufacture

1994

Location

South America

Product Details

Model: Universal 623/10
- Web width: 2210 mm (87 inches)
- Unwind diameter: 1016 mm (40 inches)
- Rewind diameter: 1016 mm (40 inches)
- Speed: 610 MPM (2000 FPM)
- Unwind type: Shaftless
- Rewind type: Individual Center Wind Rewind Arm Modules
- Drive system: Siemens Servo
- Slitting: Razor In Air

Notes:

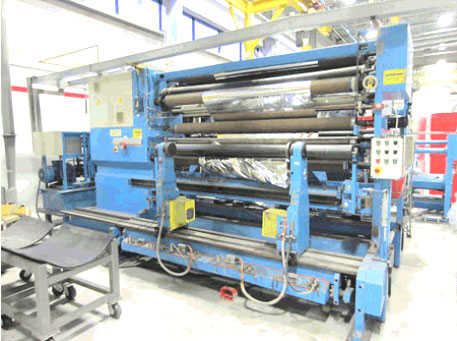

Used Kampf duplex center slitter Model Universal 623 with three (3) individual rewind stations.
- Machine equipped with 40" diameter shaftless unwind with regenerative drive, 6" & 10" chucks, automatic dancer roll tension control, edge guide,

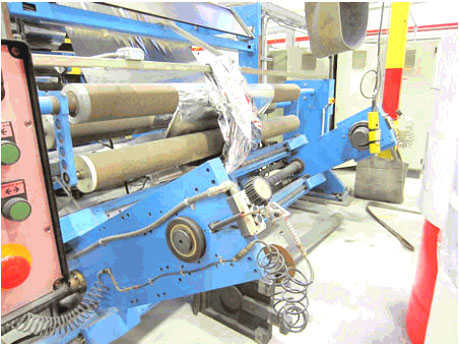

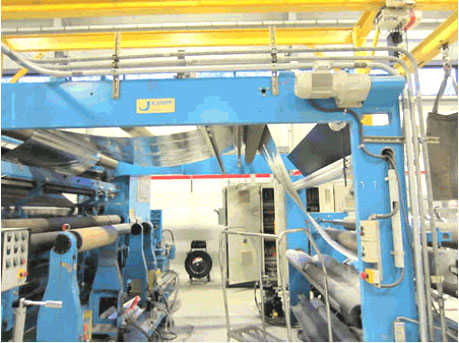

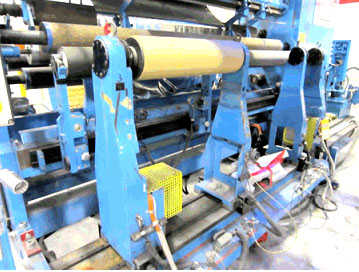

Overhead web path with web threading device, razor in air slitting, trim removal tubes, three (3) 40" diameter individual
Rewind arm assemblies with individual rider roll, ten (10) rubber covered rider rolls from 24" wide to 60" wide, REFU AC

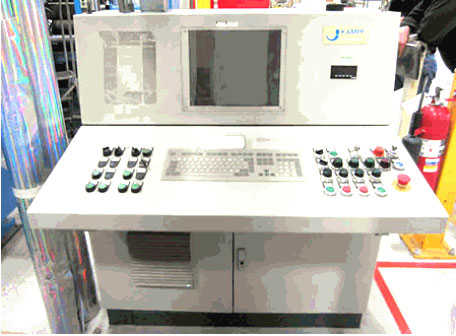

Drives, Siemens S5 PLC, operator control console with HMI, all manuals and documentation, some spare parts.

(For images, please see next pages)
