For Sale - UM - 8056 - Innova Center Slitter Rewinder Machine

Specification

Reference Numbers

UM - 8056

Product

Innova Center Slitter Rewinder Machine

Year Of Manufacture

2005

Location

Europe

Product Details

- Working width (mm): 2300
- Speed: 600 m/min
- Unwinder type: Shaftless
- Max diameter reel unwinder: 1000
- Rewinder type: Center driven with independent arms
- Max diameter reel rewinder: 800
- Knives: Razor blades; disc knives; grooved sectors pitch 1+1; trim blower.

Additional information's:
- Compresses air dried and clean (min) 6 bar.
- Unwinder: 2 couple of blocking heads for cores diameter 76 mm & 152 mm
- Fife SE 26 automatic film edge guide system
- Idle rubberized roll with matching color to obtain an accurate reading of edge guiding line
- Pneumatic brake
- Splicing table.
- Pull off unit: 1 A.C Motor for main pull-off unit
- 1 A.C Motor for secondary pull-off unit
- 1 chrome coated rolls with a specific treatment to allow air extraction
- 1 rubber coated roll; 2 banana rolls

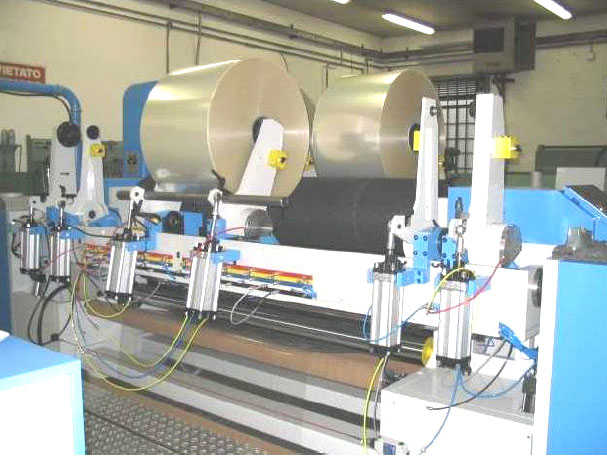

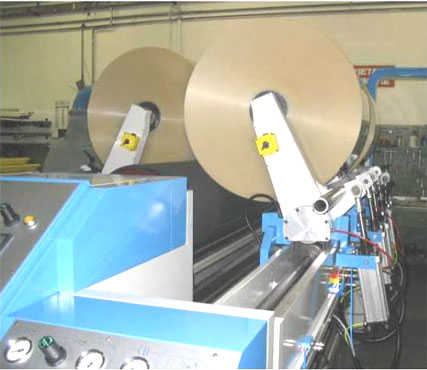

- Rewinder: 2 AC Motors (one each side)
- 6 pairs of winding hydraulic arms
- Cores diameters: 70 mm, 76 mm, 152 mm
- Rubber coated central drum cylinder
- 4 zones for clutches control
- 4 zones contact pressure control
- 4 antistatic bars; film tension control winding side
- Trolley to unload finished rolls Control Panel Siemens 57-300
- Touch Screen Siemiens
- Inverter e electro mechanics components Omron

(For images, please see next pages)
