For Sale - UM - 18562 - Windmoeller & Holscher 8 Colors CI Flexo Printing Machine

Specification

Reference Numbers

UM - 18562

Product

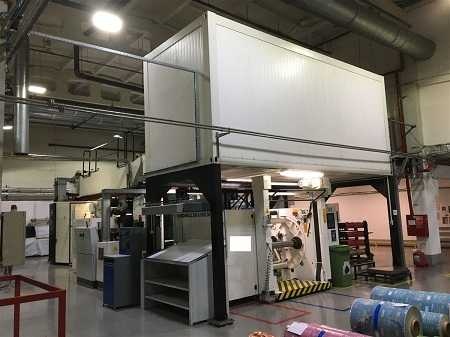

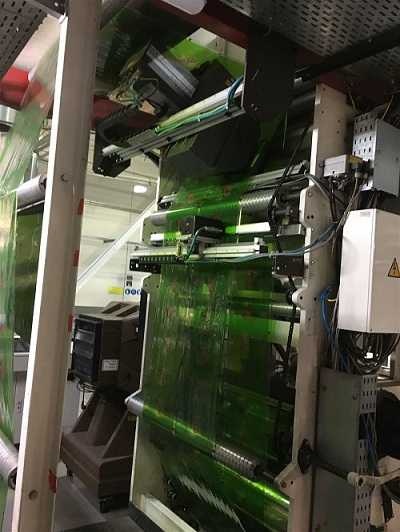

Windmoeller & Holscher 8 Colors CI Flexo Printing Machine

Year Of Manufacture

2002

Location

Europe

Product Details

Model: Novoflex XS
Number of colors: 8
Print possibilityes: 8+0
Gearless
Fast sleeve change
4 motor per deck CNC position system
Computer supervision
Web width (mm): 1050
Print width (mm): 1000
Min print repeat (mm): 350
Max print repeat (mm): 760
Unwinder type: Turret
Max reel diameter unwinder (mm): 1000
Rewinder type: Turret
Max reel diameter rewinder (mm): 1000
Videocamera: Eltromat from 2016 with registration system
Corona treatment : Softal
Inking system: Closed cha,ber doctor blades

Anilox: 43 ceramic anilox sleeves as follows 2 x 400 l/cm Vol. 4,3 ; 6x 400 L/cm-V 4,5 ; 4x 400
l/cm V.4,7; 4x 320 l/cm-V.5 ; 1x 320 l/cm-V5,5; 1x 320 l/cm V.5,7 ; 1x 315 l/cm-Vol.5,2 ; 2x 315
l/cm -V. 5,8; 2 x 285 l/cm.V.9,5 ; 4x 280 l/cm-V.8,5 ; 1x 280 l/cm-V.7 ; 2x 220 l/cm V.9,1 ;1x 180
l/cm-v.9,2 ; 1x 180 l/cm.V.9,6 ; 3x 160 l/cm-v.12 ; 2x 160 l/cm-V.12,3 ; 2x 140 l/cm -v.14 ; 1x 140
l/cm v.12,3 ; 2 x100 l/cm-v.14,2; 2x 100 l/cm-v.15,1; 1x 100 l/cm-v.22
