For Sale - UM - 17755 - Brown Roll-Fed Thermoforming Machine

Specification

Reference Numbers

UM - 17755

Product

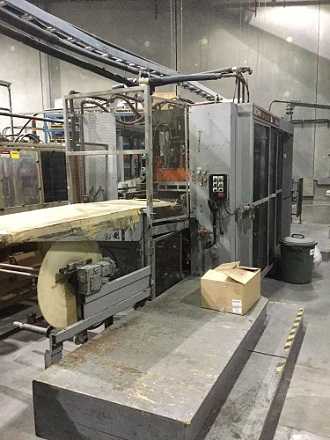

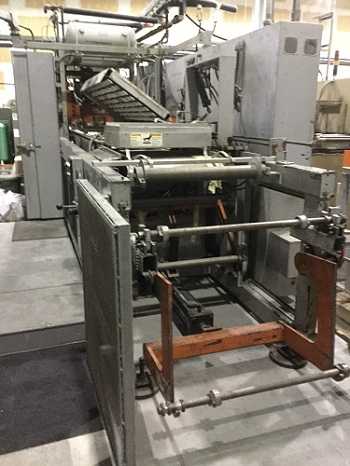

Brown Roll-Fed Thermoforming Machine

Year Of Manufacture

1997

Location

Canada

Product Details

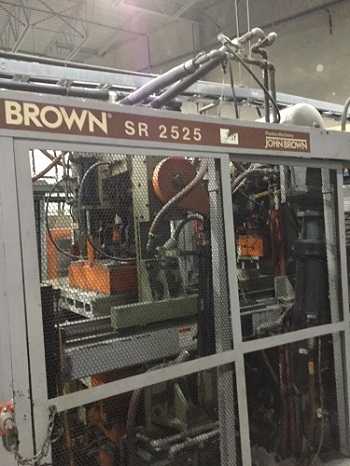

Brown: 13503 SN, SR-2525 Model
Max Mold Size:- 25"x 25"
Max Formed Sheet Size:- 25"x 28"
Top Element Type:- Ceramic
Bottom Element Type:- Cal-rad
Number of Oven Zones:- 1 top, 2 bottom, 2 preheating, 2 rail heaters
Draw Depth:- 4
Platen Drive Type:- Servo
Form Press Tonnage:- 45 tons
Platen Drive for Trim Press:- Air
Trim Press Tonnage:- 100 tons
Servo Indexing
Unwind Stand and Unwinder Included
Controller Make and Model:- Operator control console houses the Thermoforming Control SYSCOM II. RS-232 serial communications.
Alan Bradley PLC, Indramat amplifier, Indramat IAE 74794 CLM-01.3-A.
Vacuum Pump HP:- 2 HP
Volts:- 480
