For Sale - UM - 19294 - W&H Olympia CI Flexo Printing Press

Specification

Reference Numbers

UM - 19294

Product

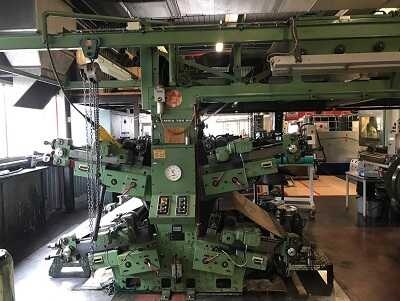

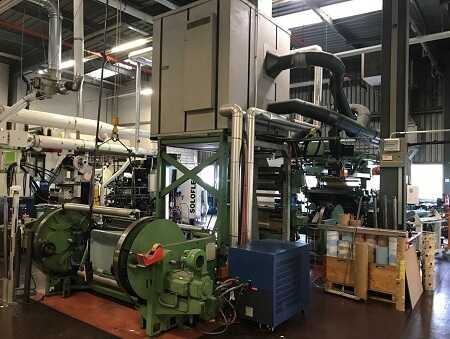

W&H Olympia CI Flexo Printing Press

Year Of Manufacture

1982

Location

Europe

Product Details

Model:- Olympia 724SM
CI or stack:- Cl
Type of inks:- Solventbased
Number of colors:- 4
Max. web width:- 1120 mm
Max. printing width:- 1070 mm
Min. – Max. printing repeat :- 300 - 900 mm
Max. mechanical speed:- 200 m/min

Material & Min – Max thickness Paper: 24 – 120 g/m2
LDPE: 20 – 150 mu
HDPE 20 – 50 mu
PP 20 – 60 mu
Laminates: 40 – 150 mu

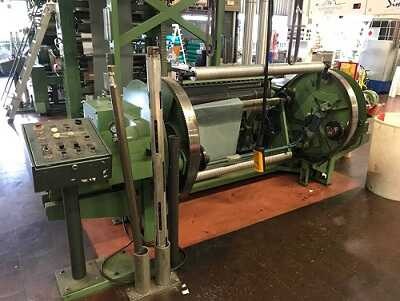

Unwind type:- Automatic turret
Max. unwind reel diameter:- 800 mm
Rewind type:- Automatic turret
Max. rewind reel diameter:- 800 mm
Drying type:- Thermic oil
Number of aniloxes:- 4
Number of printing cylinders:- 141
Number of gears 50
Other information:- One motor of the rewind is broken so at the moment winding on only one shaft is possible
