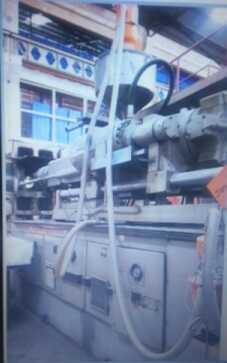

For Sale - UM - 20001 - Windsor 850 Ton Injection Moulding Machine
Reference Numbers
UM - 20001Product
Windsor 850 Ton Injection Moulding MachineYear Of Manufacture
2008Location
India
Model No of Machine:- Sprint-850
Mold Clamping Force:- 850 ton
Size of Mold Carrier HxV:- 1630 x 1500 mm
Dist Between Tie Bar HxV:- 1140 x 1000 mm
M/c Day Light Maximum:- 2500 mm
Mold height Minimum:- 500 mm
Mold height Maximum:- 1000 mm
Shot Capacity:- 7566 Gms-PS
Ejection Stroke Max:- 200 mm
Injection Pressure Max:- 1670 kg/cm2
Injection Rate Std:- 1,031 cm 3/sec
Bore Dia of Locating Ring:- 250 mm
Mould Clamping Bolt Size:- M24x150 mm
Oil Capacity (Ltr):- 1,150
Oil Grade and Type :- Hydraulic OIL DTE EXCEL68
No Of Heating Zones (Nos):- 7
Heating Load:- 84.41 KW
Motor Load:- 90 + 22+ 3.7 KW
Total Load (KW):- 200.11
Length Of Machine:- 11,400 mm
Width of Machine:- 2,820 mm
Height of Machine:- 3,155 mm
Machine Gross Weight:- 40 Ton
Water Circulation:- 200 Ltr./Min
L/D Ratio of Screw:- 20
