For Sale - UM - 31974 - Haitian 1000 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 31974

Product

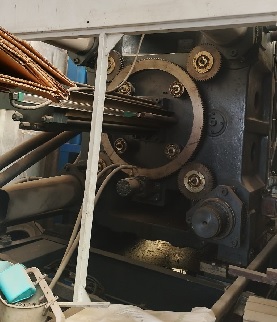

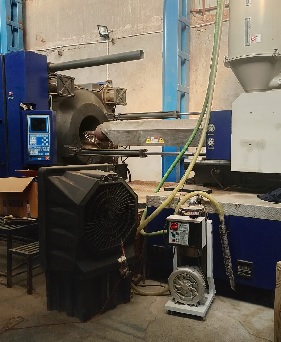

Haitian 1000 Ton Injection Moulding Machine

Year Of Manufacture

2018

Location

India
Product Details

Model:-Mars 2
Injection Unit:
Screw Diameter: 120 mm
Screw L/D Ratio: 20.2
Shot Size (Theoretical): 5768 cm³
Injection Weight (PS): 5249 g
Injection Rate: 955 g/s
Injection Pressure: 146 Mpa
Plasticizing Capacity (PS): 122 g/s
Screw Speed: 0–105 rpm

Clamping Unit:
Clamping Force: 10000 KN
Toggle Stroke: 1220 mm
Space Between Tie Bars: 1160 × 1160 mm
Maximum Mold Height: 1160 mm
Minimum Mold Height: 500 mm
Ejector Stroke: 320 mm
Ejector Tonnage: 215 KN

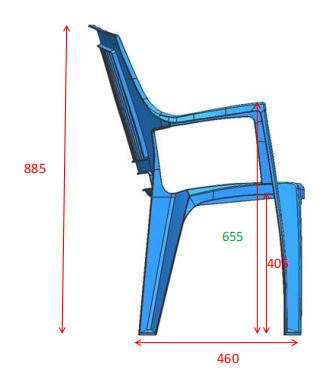

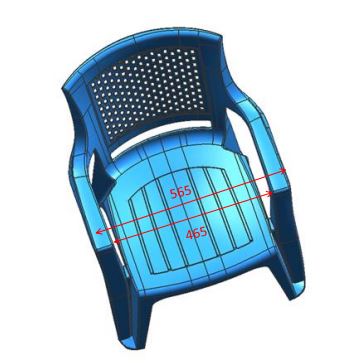

Chair Mould with 5 back inserts

Crane 15 ton
Automatic with wired and wireless remote both
60ft x 25ft crane
