For Sale - UM - 31961 - Engel 3200 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 31961

Product

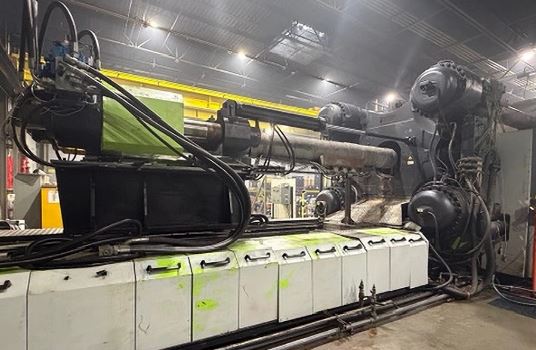

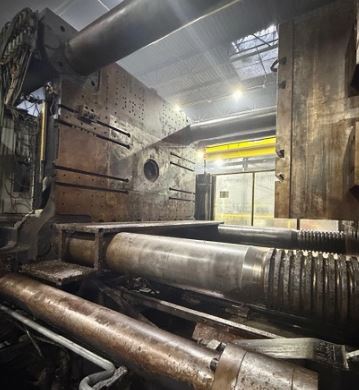

Engel 3200 Ton Injection Moulding Machine

Year Of Manufacture

2015

Location

USA

Product Details

Model:-DUO 23020 / 3200 PRO
Capacity:-3200 Ton
Shot Size:-430 oz
Tie Bar Spacing:-88" x 71"
Platen Size:-119" x 106"
Max Daylight:-200"
Opening Stroke:-122"
Min /Max Mold Height:-43" / 79"
Power Requirement :-380V-3Ph
Control:-CC300
Approx Dimensions (LxWxH):-49' x 16' x 12'
Approx Machine Weight:-320,000 lbs
Core Pull HKO
