For Sale - AIE - 3180 - Small Robots

We offers the speedy 4-axis SCARAs and the flexible 6-axis jointed-arm robots. These are compact, space-saving robots from our company and are among the fastest and most reliable robots in their class. All of them utilize the advantages of the world's most dependable and best-selling PC-based control platform KRC. And it goes without saying that this diverse range of 4-axis and 6-axis Kuka robots can be freely combined within a single system - always with the benefits of using the same control platform.

1) KR 5 sixx R650:
Fast, reliable and powerful 6-axis robot with a reach of 650 mm. This compact robot combines short cycle times and high accuracy with the dependable and user-friendly Kuka PC-based controller.

Loads:
- Payload: 5 kg

Working envelope:
- Max. reach: 650 mm

Other data and variants:
- Number of axes: 6
- Repeatability: < +/- 0.02 mm
- Weight: 28 kg
- Mounting positions: Floor, ceiling
- Controller: KR C2sr
- Speed: Max. 8.2 m/s

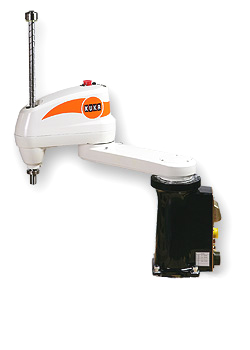

2) KR 5 scara R350:
The KR 5 scara R350 has a reach of 350 mm with a payload of 5 kg and a high positioning accuracy of under 0.02 mm. The robot itself only has a footprint of approx. 150 x 150 mm. And it goes without saying that this diverse range of 4-axis and 6-axis Kuka robots can be freely combined within a single system - always with the benefits of using the same control platform.

Loads and z-stroke:
- Payload: 5 kg
- z-stroke: 200 mm / 320 mm

Working envelope:
- Max. reach: 350 mm

Other data and variants
- Number of axes: 4
- Repeatability: < +/- 0.015 mm
- Weight: 20 kg
- Mounting positions: Floor
- Controller: KR C2sr
- Speed: Max. 7.2 m/s

Fields of application:
- Handling, loading and unloading
- Painting, surface treatment
- Application of adhesives and sealants
- Measuring, testing and inspection
- Packaging and order picking
- Other coating operations
- Assembly
- Inserting, mounting
- Other handling operations
- Soldering
- Fastening
- Handling for other machines

(For images, please see next pages)
