For Sale - AIE - 3501 - Material Handling - Feedmax Single Conveying - Feedmax SP5

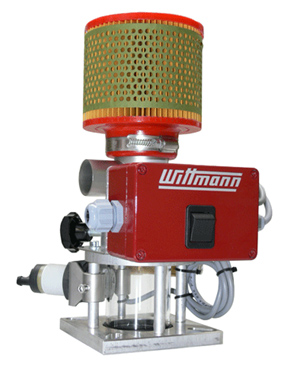

Compressed Air Loader Feedmax SP5:
Wittmann Feedmax SP5 compressed air loader offer a cost effective alternative for conveying small volumes of up to 60 kg/hr in permanent operation.
- Robust stainless steel execution:
All components in contact with material are made of stainless steel and are therefore perfectly suited for critical and abrasive applications.
- Maintenance free:
Maintenance free operation of the loader is virtually achieved by almost entirely avoiding moving components.
- Adjustable material level:
With the use of a triple shielded capacitive sensor the material buffer can be adjusted.
- Automatic material conveying with dry air

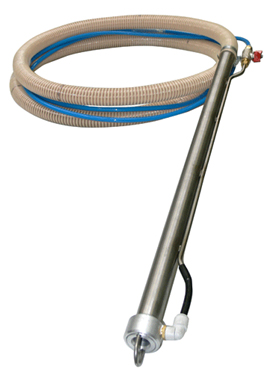

Feedmax SP5 wand:
- Vacuum Generator
A highly efficient venturi vacuum generator is integrated directly into the tip of the wand, which only requires 6 m3/h for the conveying 50 kg of new material.
- Shut-off Valve:
On the upper end of the wand, a shut-off valve is located for the activation and deactivation of the conveying.
- Conveying Hose:
As a standard, the conveying wand is equipped with a 3 m PVC hose.

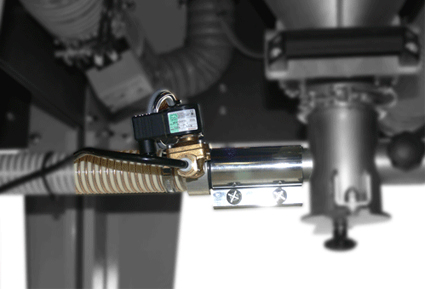

Vacuum Take-off Adapter with Integrated Venturi Generator:
- Robust stainless steel execution:
All components in contact with material are made of stainless steel and are therefore perfectly suited for critical and abrasive applications.
- Highly efficient venturi generator integrated into the vacuum take-off adapter
- Conveying of regrind material:
Possible through extended diameter of material outlet (DN 32 mm).
- Low compressed air consumption:
30 Nm3/h of compressed air consumption during 100 percent operating time.

(For images, please see next pages)

For More Details Contact:
Wittmann Battenfeld India Pvt. Ltd.
Mr. Nandakumar T.
Tel.: +91-44-42077009
Mobile: +919884909911
E-mail: nanda.kumar@wittmann-group.com
Web: http://www.wittmann-group.com
