For Sale - AIE - 3502 - Material Handling - Feedmax Single Conveying - Feedmax S3

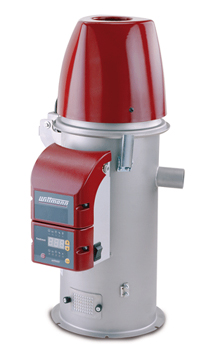

Wittmann Single Loader Feedmax S3:
The optimized single loader for the flexible conveying of smaller material volumes up to 100 kg/h in permanent operation. Peak performance of up to 250 kg/h.

- Robust stainless steel execution:
All components in contact with material are made of stainless steel and are therefore perfectly suited for critical and abrasive applications.

- Needle felt filter with cleaning:
Contains a sealed filter surface on the front to avoid the protrusion of dust particles into the structure of the needle felt filter and therefore higher operating times. Temperature resistance up to 150 Degree C.

- Wand:
Included in the standard package is as a 780 mm long wand with air vents for the adjustment of the material load, as well as a 5 m PVC hose.

- Proportional Valve (Option):
The proportional valve for the dosing of two components is externally attached to the material inlet. The control allows the selection of the dosing in percent and the number of material levels in the hopper.

- Remote Teach Pendant:
Second teach pendant with a 2 m cable for convenient accessibility in case the loader is mounted on blenders or tall machine hoppers.

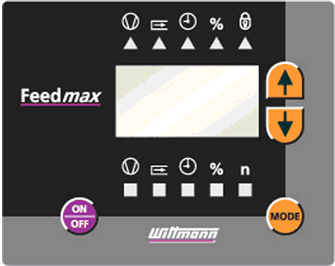

Feedmax S3 Control:
- Extensive display:
Three digits of 7-segment display for timers and parameters, e.g. conveying time, as well as LEDs for the visualization of internal operating conditions.

- Granulator operating mode:
Adjustable timer function for the emptying of a granulator regrind bin.

- Level monitoring:
Via Reed contact with immediate material request.

(For images, please see next pages)
