For Sale - AIE - 3505 - Central Conveying for Complete De-Dusting of Conveyed Resin

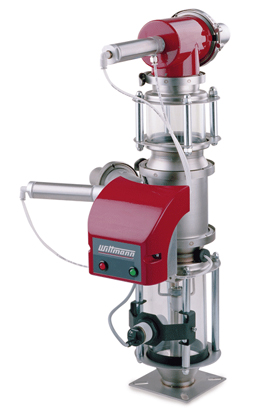

Feedmax B100 Series Loaders:
The Feedmax B100 series loaders are built for the highest functionality and especially low material throughputs as well for complete de-dusting of the conveyed resin. The modular design and the tool free removal allows simple cleaning of the loader anytime.

- Complete flexibility: Fully accessible quick release band clamps and removable / interchangeable stainless steel line size reducers provide complete flexibility.
- Superior wear resistance: Pneumatically actuated cast stainless steel material valve for highly abrasive feeding applications.
- Highest operational reliability: Dustproof and pneumatically controlled material shut-off discharge valve.
- Optimal material inventory: Adjustable via proximity sensor in the clear tube section.
- Easy operation: The modular assemblies can be easily cleaned or interchanged.
- "AIR-JET" material de-dusting: Resin is completely de-dusted in a turbulent glass chamber during the conveying cycle.
- Easily visible: Status LEDs and pluggable control cable for network control systems.
- Visual material flow inspection: Tempered clear tube assembly made of Bora-Silicate.

Advantages of Feedmax 100 Series Loaders:
- "AIR-JET" material de-dusting:
During the conveying cycle the material passes through a turbulent air stream vortex in the glass chamber and is completely de-dusted in order to improve the processing quality of material.
- Pneumatic material discharge shut-off valve:
Highest functionality guaranteed thru a completely leak-proof seal every conveying cycle. The dustproof design also guarantees dust free operation at the machine hopper.
- Pneumatic controlled material + vacuum valves:
Thick-walled stainless steel design for highly abrasive feeding applications. The valve gasket, which is located outside of the material flow, guarantees highest functionality and prevents vacuum leaks typical of gravity type flappers.
- Optimal material inventory:
Adjustable via proximity sensor in the clear tube section. Material inventory can be adjusted to the capacity needs of the processing machine thereby essentially improving the processing quality.

(For picture, please see next page)
