For Sale - AIE - 3507 - Feedmax Central Conveying - Feedmax Series A

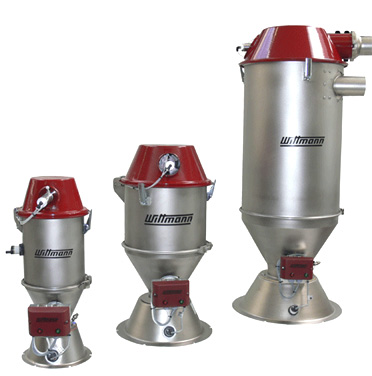

Central Loaders Feedmax Series A:
The central loaders series Feedmax A are built for highest functionality and demanding applications. The modular design of the vacuum loaders guarantees on one side the specific adjustment to customer requirements, as well as simple cleaning.

- Rugged and well proven design: In stainless steel for superior wear resistance

- Easy cleaning: By means of foldable lid, as well as toggle latches and clamps.

- Pneumatically actuated discharge valve: The pneumatically operated discharge valve guarantees highest operational functionality and complete sealing during the loading cycle.

- Capacitive sensor: Triple-shielded sensor for the detection of material demands.

- Modular Construction: For the optimum size configuration and assembly without tools.

Details Feedmax A200, A300 and A400 Series:
- Stainless Steel Basket Filter: Removable, rugged stainless steel basket filters allows for easy cleaning.

- Pneumatic Valve: Integral pneumatic vacuum control valve reduces overall loader height.

- Shut-off Valve: Pneumatic material discharge shut-off valve assembly with integral air supply.

- Material Inlet: Stainless steel material inlet and flapper allow optimized sealing of inlet tube. Smooth surfaces guarantee proper conveying of the material.

- Vacuum Loader: Optionally the vacuum loader can be equipped with two pneumatically operated material inlets, in order to allow the conveying of two different materials and material sources

- Clear Tube Assembly: The optional clear tube assembly allows for a perfect visual inspection of the material flow and precise adjustment of material inventory.

(For picture, please see next page)
