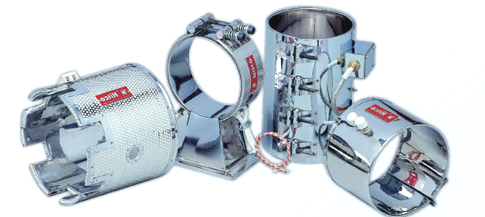

For Sale - SRP - 2195 - Mica Band Heater

Hitco Mica band heater design is the result of many years of research, development and testing for a reliable mica insulated band heater that can perform at higher operating temperatures [in application up to 350° C] essential to process high temperatures resins, providing long, efficient service necessary for today's high productivity of plastic extruders, injection and blow molding machines.

Mica band is proven heater design for good life efficiency and dependability. It assures maintaining the lowest winding temperatures possible, keeping low-mass heating element assembly for fast heat-up and quick thermal response to controls. It incorporates the Low Thermal Expansion Built-In Strap, a unique feature developed by Hitco.

Technical Characteristics
Hitco meets the challenges with BAND HEATERS designed with materials from brass and stainless steel sheaths in mica band to accommodate high wattage requirements.

Standard Features:
- Widely used to heat the molds, dies, nozzles and especially to heat the cylinders (barrels) on all types of plastics processing machinery.
- Most economical.
- Superior heat transfer & uniformity.
- Excellent dielectric strength.
- Constant and long lasting efficiency.
- Easy to install.
- Available with thermocouple & cutout holes.
- Flexible in one or two pieces.
- Available in common square, rectangular and hex shaped.
- Various constructions & termination.
- Designed to your specifications.
- Long life.
- Asbestos (Optional)

Technical Data: The exigencies of the plastic field of working with advance high productivity technical systems, with newly composed raw materials, required plant to work under higher working temperatures and bigger heating quantity.

- Resistive Winding big section wide band nickel chrome 80/20 with consequent low specific load obtained by N.C winding machine assuring constant repeatability and uniformity.
- Insulation by continuous pure mica with a very low inorganic alloy content.
- Internal Casing of stainless steel with high thermal conductivity for guaranteed maximum heat transmission to the plastification cylinders.
- External Screw Strap Casing of stainless steel suitable for high temperature for guaranteed maximum thermal efficiency making a pressure action on the heating band.

- Special Terminal Box Designed in ceramics incorporates the junctions between power cables and resistive plate. A metallic protection shields, the ceramic from knocks and wire ripping.
- Power Cable for high temperatures with leads in pure nickel or nickel copper. External fiberglass insulated. External protection in metallic braiding with various options.

Typical Application:
- Plastic Injection molding Machines
- Plastic Extruders
- Food and Candy Extruders
- Drum Heating
- Extrusion Dies
- Holding Tanks
- Blow Molding Machines
- Vending Machines
- Barrels & Heads
- Autoclaves & Sterilizers
- Metallurgical Analyzers

(For picture, please see next page)
