For Sale - SRP - 3057 - Twin Tube and Fast Medium Wave Infrared Heater

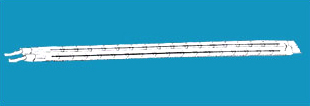

Twin Tube Medium Wave Infrared Heater
Our twin tube MW IR heater is made up of 8-shape high-purity clear quartz twin tube, with each tube having Ni-Chrome heating coil that runs in U shape in the tube.

Features:
- Heating up and cooling down time is approximately 50 secs.
- Available with gold reflector and without reflector.
- The outer rear side of the tube of the reflector has the gold coating.
- Heat loss from backside is prevented by the reflector, thereby power is saved.
- Results in making surrounding work area cooler.
- Increases the efficiency and directionality of the heater.

Specifications:
- Standard sizes (in cross section): 11 mm x 23 mm and 15 mm x 32 mm.
- Maximum length: 2000 mm.
- Power density: 60 KW / m2 can be achieved.

Fast Medium Wave Infrared Heater:
Our twin tube fast medium wave infrared heaters has a filament tungsten wire and this tube is filled with halogen gas. The round ceramic base of this heater has a lead wire of 500 mm size (one end or two ends) and it is also configured with lead and insulated wires.

Specifications:
We make available this type of heater in standard size of
- Outer diameter of the tube: 11x23 mm transparent quartz glass
- Temp. of filament: 1600
- Wave length: 1.5u - 2.0u

(For images, please see next pages)
