For Sale - SRP - 3059 - Twin Tube Short Wave Infrared Module

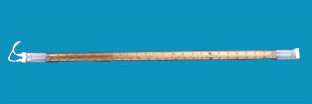

This is made up of 8-shape high-purity clear quartz twin tube, each tube has heating coil of tungsten material which runs in U shape in the tube which is filled with halogen gas.

- Power density up to 150 kw/m2 is achieved. Heating up and cooling down time is approximately one second.
- These heaters are available with gold reflector and without reflector.
- Reflector is in the form of gold coating on outer rear side of the tube.
- Due to reflector heat loss from backside is prevented and thus power saving is achieved.
- This also results in making surrounding work area cooler.
- This also increases the efficiency and directionality of the heater.
- There are two standard sizes 11 mm x 23 mm and 15 mm x 32 mm in cross section. Maximum length available is 2000 mm.

(For picture, please see next page)
