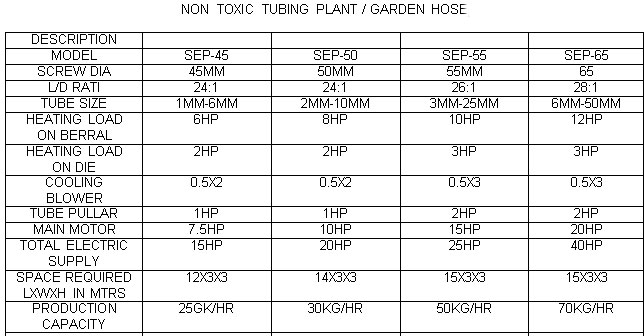

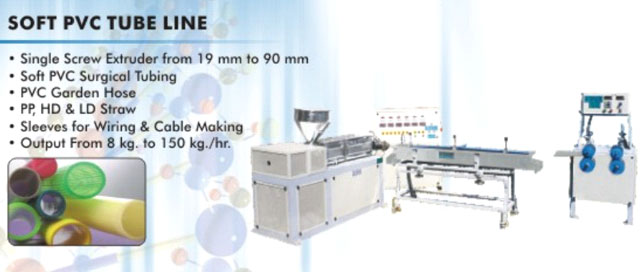

For Sale - PCM - 2337 - Non Toxic Tubing Extrusion Plant

Extruder: contains Screw and Barrel manufactured from alloy steel duly nitried and hard chrome plated for long life.
- Screw is fitted on a suitable heavy thrust housing with thrust and roller bearing to withstand thrust pressure during extrusion. - Screw is driven by AC motor and coupled through a suitable standard make gear box. - Barrel is divided into three zones for heating load distribution.
- Cooling blowers are provided on the barrel for all zones.
- Water circulating jacket is provided in feeding zone.

Die:
- Die and adaptor is made out from alloy steel and hard chrome plated.

Cooling Tank:
- This unit is fabricated from the SS sheet and provide facility to adjust height and exact place.

Tube Puller:
- This unit is used to pull tube and equipped to adjust the gap between two rolls.
- AC motor of 1 HP capacity is coupled through a suitable reduction gear box to drive the rolls.

Control Panel:
- Control panel is comprises of Microprocessor based Digital Temperature controllers to control the temperature on barrel and die.
- All AC motors are driven by thyristorised AC drive to get the better speed control.
- Main AC motor get the optimum performance of the machine.
