Reference Numbers
PCM - 2989Product
HP Series Stretch Blow Moulding Machines
Semi-automatic PET preform stretch blow moulding machine with preform rotary pre-heating I.R. oven
Machines of this series are designed for operating in the semi-automatic mode. These machines are used for manufacturing bottles and jars of size 25 ml to 25 ltr. capacity made from polyethylene terephatalate (PET) preform by thermal processing and stretch blowing.

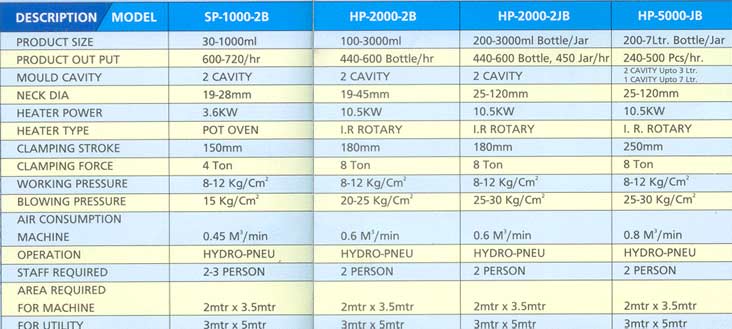

Following are the models of HP series, for more details please refer to the technical specifications:
1) SP-1000-2B
- Product volume: 30/1000 ml
- Output: 600-720 / hr

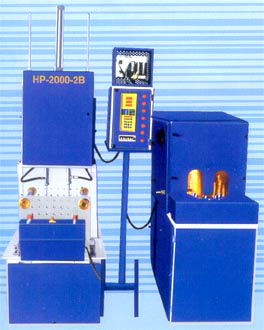

2) HP-2000-2B
- Product volume: 100/3000 ml
- Output: 440/600 bottle / hr
3) HP-2000-2JB
- Product volume: 200-3000 ml bottle/jar
- Output: 440-600 bottle/hr, 450 jar/hr

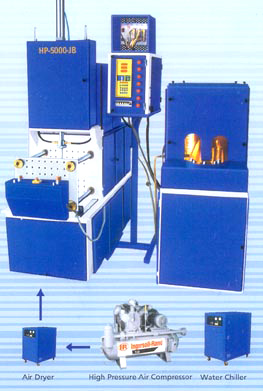

4) HP-5000-JB
- Product volume: 200 ml - 7 ltr. bottle/jar
- Output: 240/500 pcs/hr

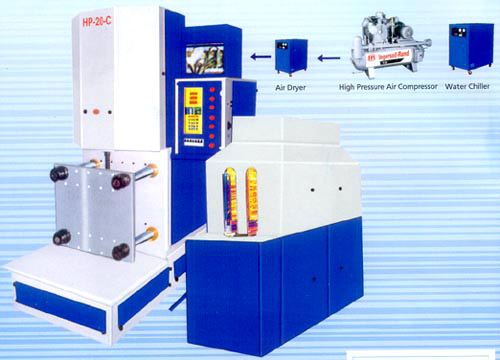

5) HP-20-C
- Product volume: 10-25 Ltr. bottle/jar
- Output: 60/120 pcs/hr

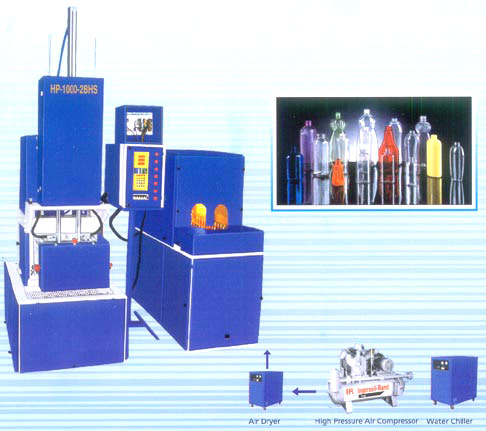

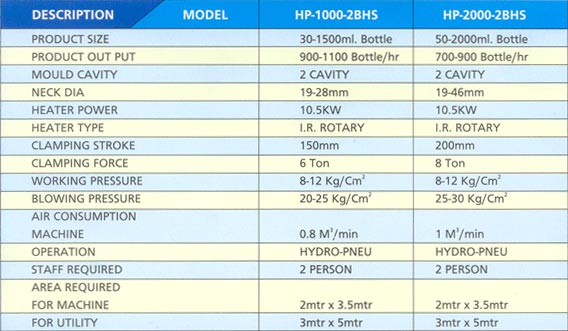

6) HP-1000-2BHS
- Product volume: 30-1500 ml. bottle
- Output: 900-1100 bottle/hr
7) HP-2000-2BHS
- Product Volume: 50-2000 ml. bottle
- Output: 700-900 bottle / hr
(For more details & images please see next pages)
For More Details Contact:
Suraj Plastic Industries
Mr. Tej R. Singhal
Tel.: 011-2571 7704 / 25719179
Cell: 098110 31630
E-mail: suraj-sbs@airtelbroadband.in,
tej-id@eth.net
