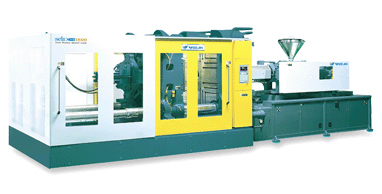

For Sale - PCM - 3000 - Two-Platen Direct Lock Type Machine

Model: Selex ND
This type machine is designed by two platen direct lock type of new hydraulic clamp method to reduce the installation area by compact design.
- Excellent reproducibility and responsiveness with servo valve for feed-back controls. (Injection unit: optional)
- Precise position control by proportional control valves for mold open/close.
- Energy-saving effects with the multi-layer pump locking system.
- Separate proportional control valves for pressure and flow rate allows control for speed/high pressure and high speed/low pressure conditions, resulting in excellent reproducibility and responsiveness.

Injection unit:
- Back pressure is well-controlled on the screen by using proportional valve and is controlled in detail to be highly precise production.
- Effective response for various resins by installing high toque on hydraulic motor.
- As hydraulic motor is moving with screw connected directly, RPM is controlled accurately without any loss of toque.
- Precious injection & charge control based on multi stages control of pressure, speed, and distance by using superior position transducer.
- Easy clean and change of screw and cylinder due to use of injection rotation device.

Controller:
Specialized control with closed-loop (optional) system for high precision and high speed injection molding machine that guarantee excellent stability and precision of machine movement.
- i80186-32MHz 16bit micro processor
- PID automatic temperature control
- CIM & remote control (optional)
- Printer port
- 10.4" TFT color LCD
- In & Output cards

Hydraulic unit:
- Faster responsiveness and impact reduction during the machine operation thanks to the cartridge valves.
- Convenient to confirm the movement of each part.
- Easy and convenient access to repair & maintenance.

Clamping unit:
- The installation area is reduced up to 25 percent by compact design of clamping unit.
- The accurate clamping position and fast clamping speed by proportional control increases productivity.
- The parallel strength to inside the mold caused by clamping force with four cylinders generates least contraction and deformation of product.
- Auto mold setting with mathematic program shortens mold changing time.
- Effectiveness for long size mold product due to wide tie bar distance and long open stroke.
- Less energy consumption and reduced upward pressure period with high pressure on four cylinders during clamp closing.
- Mold lifetime is extended due to accurate clamping force per mold.
- Fast cycle time with auto half nut setting by mathematic program.
