Reference Numbers
PCM - 3002Product

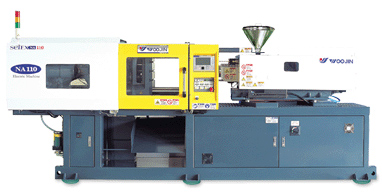

Electric Injection Molding Machine
Model: Selex NA
- Energy-saving & low-noise
- Productivity improvement with synchronized mechanism.
- Precision control: Position tolerance limit
i 3/4 0.07 mm
- High-speed five-linkage toggle structures.
- Consistent injection works by high out-put & high-response AC servo motor.
- Easy operation with the color touch-screen control.
- Stable high speed clamping structures with five-linkage toggles
- Precise control under hi-speed & hi-pressure with accurate injection unit
- Energy-saving and lower noise level
- Increased productivity through the synchronized mechanism
Injection unit:
- High accuracy of injection pressure, dwellings and back-pressure control by rodcell.
- Excellent for thin-product by high injection speed of 300 mm/sec.
- High stability for the beginning and end of injection.
- Excellent stability and repetition during speed and pressure control.
Controller:
Specialized control with closed-loop system for high precision and high speed injection molding machine that guarantee excellent stability and precision of machine movement.
- High speed controller
- Easy operation on color LCD touch screen panel.
- External memory capacity of 40 molds per FDD 3.5" diskette.
- Excellent process capacity of various product data
- PID temperature control: standard - 8 zones.
- User-friendly operation and graphically displayed monitor.
- Multi-staged control based on user's option.
- Excellent graphic analyzing.
Clamping unit:
- Smooth machine movement by stable modulation control during high speed clamping movement.
- Maximize lifetime by using high intensive ball screw.
- Minimize platen deformation by high intensive design.
- High accuracy of platen position control
i 3/4 0.01 mm
