For Sale - PCM - 3383 - Multi Layer Blown Film Plant

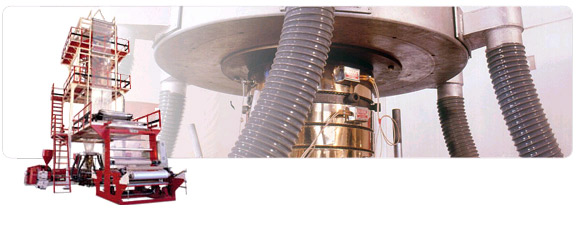

Konark Plastomech Multilayer Blown Film Plant:
- Material processed: LDPE / LLDPE / HDPE
- Melt capacity: 90 Kg/hr to 300 Kg/hr
- Layflat width: 600 mm to 2000 mm

Features:
- 2 layer / 3 layer options
- Nitrided screw and barrel made out from special intro alloy steel for long life and trouble free operations
- Groove feed barrel delivering consistent higher productivity
- Helical gear box with inbuilt thrust bearing
- Manually operated lever type screen changer
- Specially designed spiral type co-ex die ensuring uniform flow distribution with better thickness control
- Calibration basket
- Reversing haul-off
- Semi/fully automatic winder
- AC inverter in line with AC motor with synchronization
- Microprocessor based PID temperature controller

Optional:
- Bimetallic screw and barrel
- Oscillating platform
- Automatic winder with PLC control and touch screen / SCADA

Application:
- Lamination film
- Stretch film
- Shrink film
- Oil / ghee / milk / water pouch film
- Special purpose film

(For more details and picture, please see next pages)
