For Sale - PCM - 3455 - Monolayer Blown Film Plant: Standard Model

Specification

Reference Numbers

PCM - 3455

Product

Monolayer Blown Film Plant: Standard Model

Product Details

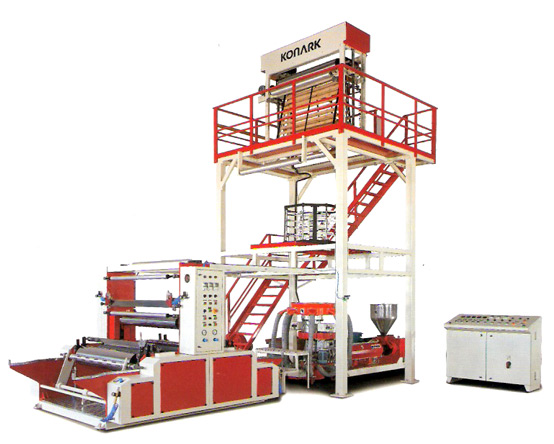

Konark Plastomech Monolayer Blown Film Plant: Standard Model
- Materials processed: HM / HDPE / LDPE / LLDPE / bio degradable polymers
- Melt capacity: 75 kg/hr to 180 kg/hr
- Layflat width: 600 mm to 2500 mm

Features:
- Optimum product costing due to higher productivity with less power consumption groove feed barrel
- Nitrided screw and barrel made out from special intro alloy steel for long life and trouble free operations
- Specially designed spiral type die ensuring uniform flow distribution with better thickness control
- Helical gear box with inbuilt thrust bearing
- Bubble guiding basket
- Back to back two station winder
- AC invertor inline with AC motor with synchronization
- Microprocessor based PID temperature controller

Optional:

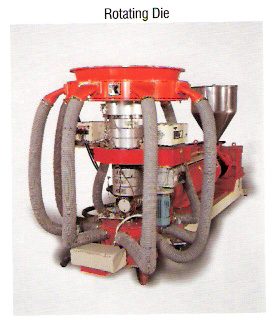

- Continuous 360 Degree rotating die
- Manual level type screen changer

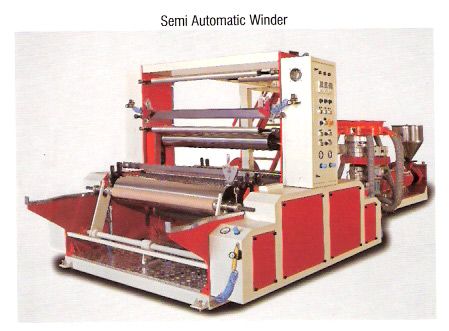

- Semi automatic / fully automatic winder

Application:
- Film for shopping bag
- Film for liners
- Stretch film
- Shrink film
- Lamination film

(For more details and images, please see next pages)

For More Details Contact:
Konark Plastomech Pvt. Ltd.
Mr. Jaymin Pithwa
Tel.: +91-79-2289 1670
Mobile: +919898068273
E-mail: sales@konarkplastomech.com
Web: www.konarkplastomech.com
