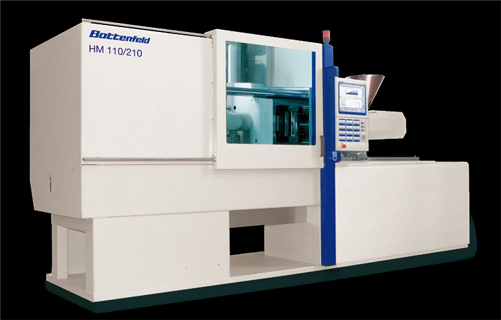

For Sale - PCM - 3534 - HM Series - Hydraulic Injection Moulding Machines from 45 to 650 tons

Battenfeld hydraulic-modular HM series stands for modular versatility, ultimate precision, short footprint and an extensive range of options for literally every application:
- Highly flexible due to the choice among 8 clamping units, 9 injection units and 12 different screw diameters
- Very short 2 resp. 3-platen design
- High-performance plasticizing systems for all thermoplastic, thermoset and elastomer resins for shot weights of up to 1300 g PS
- High-performance UNILOG B6 control system
- Automation with robots, pick-and-place devices and mold changing systems possible

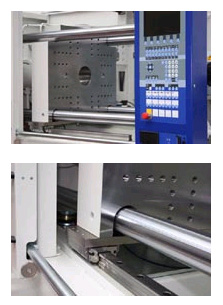

Clamping unit:
The hydraulic clamping system of the HM allows for short locking strokes, parallel movement of ejector and core pulls as well as even shorter cycle times through fast-stroke cylinders.

Major advantages:
- Parallel clamping cylinders for fast and even clamping force build-up
- Precise platen parallelism through high platen rigidity of the 3-platen design
- Maintenance-friendly linear guide system
- Energy-efficient hydraulics due to electrically adjustable variable delivery pumps
- Sensitive low-pressure mold protection
- Easy access to the mold
- High reproducibility of all parameters

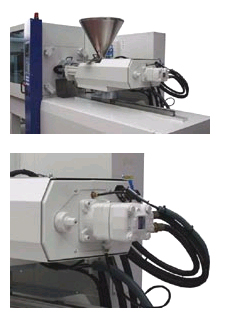

Injection unit:
The HM injection units guarantee high precision and reproducibility through their compact design with an integrated hydraulic block and a hydraulically direct-driven screw.

Outstanding features:
- High flexibility due to one barrel being universally compatible with different injection units
- Easy access to screw because of swiveling injection unit (up to .../ 1330)
- Momentum-free nozzle contact due to positioning of nozzle carriage cylinders opposite each other
- Precise axial movements of the injection unit due to linear guide system
- Optimum melt homogeneity due to a uniform L/D ratio of 22:1 and 2000 bar injection pressure for medium screw diameters

(For images, please see next pages)

For More Details Contact:
Wittmann Battenfeld India Pvt. Ltd.
Mr. Nandakumar T.
Tel.: +91-44-42077009
Mobile: +919884909911
E-mail: nanda.kumar@wittmann-group.com
Web: http://www.wittmann-group.com
