For Sale - PCM - 3735 - High Speed HDPE Extrusion Line

Hindustan Plastics HDPE extrusion line is fabricated using high grade steel. It comes with different specification and consists of different values such as min PIPE OD (mm) and max PIPE OD (mm). The plasticized capacity of HDPE extrusion line is high that ranges from 550 kg/ hr to 600 kg/ hr. Our range of HDPE extrusion line includes high speed cable extrusion line, high speed extrusion line and industrial cutting saws.

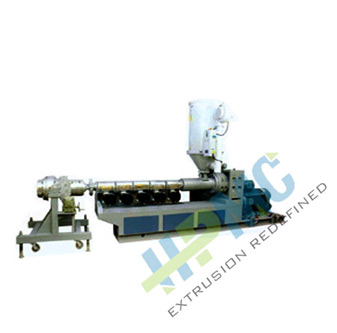

High Speed HDPE Extrusion Line:
We offer high speed HDPE extrusion line which is available in different models such as HPMC 65G, HPMC 75G, HPMC 90G. The machine finds usage in the extrusion of polyolefin plastics. The plasticized capacity of the extrusion line ranges from 175 kg/hr to 600 kg/hr.

Features:
- Easy operation
- Optimum performance
- Durable
- Low power consumption
- Corrosion resistance

Spiral Type Die Head:
- Spiral type die head ensures stable wall thickness of PE pipe even at higher output.
- It can produce pipe upto 630mm.
- Low pressure diagonal channel with spiral mixing part ensures extrusion at low temperature and homogeneous plasticization.

Screw and Barrel:
- The screw adopt barrier type mixing zone.
- The barrel feeding zone is groove feed bush and made of hard alloy.
- It is result higher output rates, homogeneous plasticizing and material slippage

PLC Control System:
- There is an option for the whole line with PLC control system and large liquid crystal screen which makes the operation very convenient.

Vacuum Tank:
- Special design vacuum sizing can ensure the stability of diameter and roundness even when producing the pipe with higher wall thickness.
- The water spray unit produces high speed spray vortex to achieve fine and even cooling effect.

Double/Single Station Coiler:
- Double station coiler can be provided for diameter up to 63 mm.
- Single station coiler can be provided for diameter up to 110 mm.

(For more details and picture, please see next pages)
