For Sale - PCM - 4119 - Mono layer Multi Purpose Blow Film Plant
Reference Numbers
PCM - 4119Product
Mono layer Multi Purpose Blow Film Plant
1) Model: K - 1 - 45G
- Polymer processed: LDPE / LLDPE / HM-HDPE
- Screw diameter (mm): 45
- L/D ratio: 30:1
- Main drive (HP): 20
- Layflat width range (mm): 150 - 800
- Film thickness range (micron): 20 - 200
- Output (Kg/hr): 45 - 50
2) Model: K - 1 - 55G
- Polymer processed: LDPE / LLDPE / HM-HDPE
- Screw diameter (mm): 55
- L/D Ratio: 30:1
- Main drive (HP): 30
- Layflat width range (mm): 200 - 1100
- Film thickness range (micron): 20 - 200
- Output (Kg/hr): 70 - 80
Wide Width Blown Film Plant
Model: K - WW - 75G
- Polymer processed: LDPE / LLDPE / HM-HDPE
- Screw diameter (mm) 75
- L/D ratio: 28:1
- Main drive (HP): 75
- Layflat width range (mm): 1200 - 2100
- Film thickness range (micron): 20 -200
- Output (Kg/hr): 180 - 200

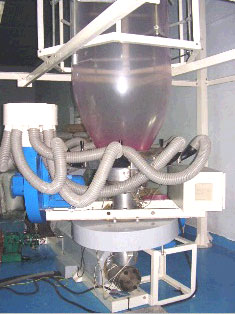

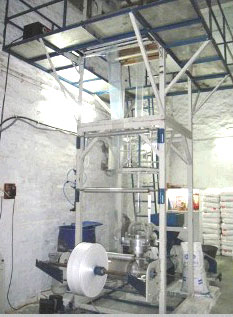

(For images, please see next pages)
For More Details Contact:
Kalimata Plastic Machinery Pvt Ltd, Maharashtra, India
Prasad Chapekar
Mob: 9930216016
Tel: 91-22-32622005
Email: sales@kalimata.in
