For Sale - PCM - 4805 - Monolayer Ultra Blown Film Plant

Specification

Reference Numbers

PCM - 4805

Product

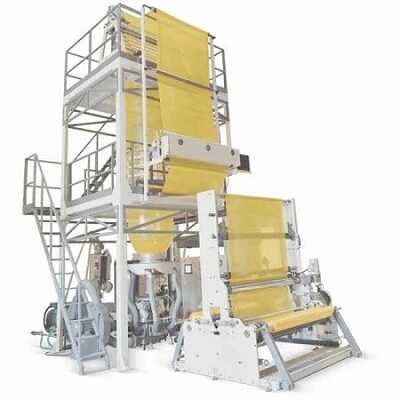

Monolayer Ultra Blown Film Plant
Product Details

Final Product:- HM / HDPE / LDPE / LLDPE
Material Used:- HM, HDPE, LDPE, LLDPE Virgin Raw Material
Output Range:- 160 - 280 Kg/Hr (Depends On Extruder's Size)
Film Layer:- Single Layer
Screw Diameter:- 75G / 90G / 100G MM (Customized)
Screw L/D:- 30:1 (Customized)
Layflat Width:- 1350 - 3000 MM
Micron Thickness:- 30 - 250

Optional Devices:
Hopper Loader,
Hopper Loader With Dryer,
Corona Treater, Auto Winder,
Trim Suction Blower Heat Exchanger,
Web Aligner, Bi-Metalic Screw & Barrel Set,
Two Station Surface Winder Chiller,
Melt Pressure Indicator,
Hydraulic Screen Changer

Model:
1) ULTRA 2275
Screw Diameter : 75 G mm
Layflat Width : 1350-2100 mm
Max. Output : 160-180 kg/hr
Thickness : 30-180 mm

2) ULTRA 2690
Screw Diameter : 90 G mm
Layflat Width : 1800-2500 mm
Max. Output : 230 kg/hr
Thickness : 30-180 mm

3) ULTRA 32100
Screw Diameter : 100 G mm
Layflat Width : 2000-3000 mm
Max. Output : 250-280 kg/hr
Thickness : 40-250 mm

For More Details Contact:
Shubham Extrusion Technik Pvt. Ltd.
Mr. Kartik Dave
Mobile No:07573016126
Email ID: shubham.extrusion1997@gmail.com
