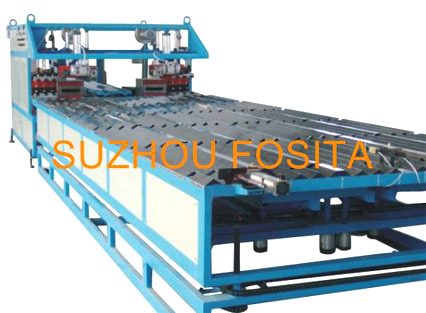

For Sale - PTP - 3036 - Double Pipe Automatic Belling Machine

It is called fully automatic U type belling machine. It is a dedicated device which is suitable for U type belling of PP, PP-R, PVC and so on. It can bell J-type which is called torque. The belling range is Dia. 40 - Dia. 200 mm, the voltage is AC380V; 50HZ. The unit outside dimensions are 8466 x 2901 x 2499 mm, the center high is 1,100 - 1,200 mm, it capacity is 18 kw, and the total weight is 2,500 kg. It can be used for the plastic tubing production line and can it can also be used as the single machine. It is highly automated, and the performance is steady and reliable. It is easy to operate. The adaptability of the craft is good. The belling is smooth and round, with no abrasion.

Main technical parameters:
- Central height: 900-1000 mm
- Pipe diam. specification: 16-63 mm to 75-250 mm
- Max. length: 8000 mm
- Outline dimension: 7656x1410x1900 mm to 8466x2901x2499 mm
- Moving distance: 500 mm to 900 mm
- Total power: 32 kw to 50 kw
- Power of heating furance (outside): 15 kw to 16.8 kw
- Power of heating furance (inside): 3 kw to 5 kw
- Working pressure of hydraulic system: 1.5-3.5mpa to 1.5-5.5mpa
- Max. air pressure: 0.6mpa to 0.7mpa
- Total weight: 2800 kg to 5500 kg
