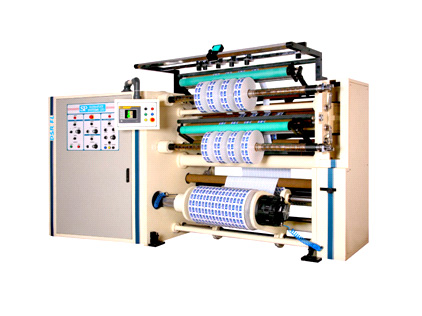

For Sale - PTP - 3112 - DSR FL - Slitter rewinder with a front loading unwind.

The DSR FL (front loading version) offers a compact solution for smaller unwind and rewind diameters where accessibility, visibility and operator comfort are the main concern. Here the unwind and duplex rewind sections are positioned vertically on the operator side, reducing operator movement and allowing easier web threading.

The DSR FL slitter rewinder is extensively used in the flexible packaging and converting industry to slit and rewind paper, plastic films, aluminum foil and flexible laminates.

Besides the above specific benefits offered by this configuration, the DSR FL comes with the following features common with the other versions manufactured by the company, namely the DSR RL and the ULTRASLIT OHP-

- Shaftless unwind section.
- Pneumatically operated cutting section.
- Tangential shear cutting, razor in groove or razor in air cutting.
- "S" wrapped, segmented rider roll assembly.
- Pneumatic slide door for the cantilevered rewind shafts.
- Swivel arm Off loader.
- Average rewind changeover time of under 3 minutes.
- Differential rewind shafts with ball locks.
- Integrated control panel and an intuitive touch panel HMI for ease of operation.

(For picture, please see next page)
