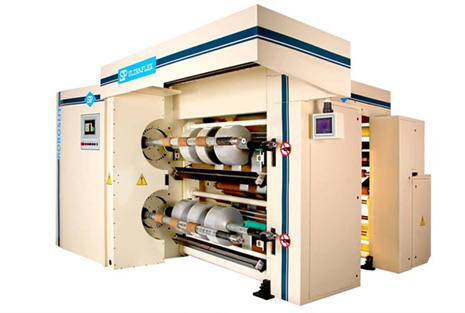

For Sale - PTP - 3114 - ROBOSLIT - Slitting and rewinding machine with a 30 seconds dual turret changeover and automatic core and cutter positioning system.

The most recent addition to the range is the dual turret ROBOSLIT which can handle high volumes equivalent to between 2 and 3 conventional high speed slitter rewinders by virtue of a 30 seconds rewind changeover time.

The ROBOSLIT slitting and rewinding machine is extensively use in the flexible packaging and converting industry to slit and rewind paper, plastic films, aluminum foil and flexible laminates.

The ROBOSLIT is a fully loaded slitting rewinding machine with an overhead path and revolutionary productivity enhancing features including a robotic cutter positioning system, linear rider roll unit and a 30 seconds changeover made possible by dual turret rewinds, automatic splicing, robotic core positioning system and finished reels ejector.

Besides the above radical concepts introduced in this version, the more standard features include:

- Shaftless unwind section with floor lift.
- Splice table with pneumatic clamping.
- Pneumatically operated cutting section.
- Tangential shear cutting, razor in groove or razor in air cutting.
- Swivel arm Off loader with the possibility of fully mechanized reel handling.
- Differential rewind shafts with ball locks.
- Integrated PLC based control panel and an intuitive touch panel HMI for ease of operation.

(For images, please see next pages)
