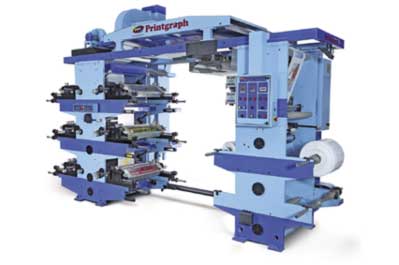

For Sale - PNE - 4370 - 2 to 12 Colour Flexo Printing Press Machine

2 to 12 Colour Flexo Printing Press for (Stack Type)

Substrates Printable
Corona Treated Plastic Films, HMHDPE, HDPE, LLDPE, Polypropylene, Polyester Pearlised Polyester, B.O.P.P, Pearlised B.O.P.P, Thin Foam Sheets, Paper and Aluminium Foils, etc.

Features
- Forward inching facility (Jogging).
- Auto stop for Web break.
- Temperature controller for heater ensures power saving.
- Individual air controller for each station.
- Control panel with Digital AC drive.
- Impression rollers and Anilox Rollers are dynamically balanced, ground and hard chrome plated.
- Helical gears for reduced play, smooth movement and long life.
- Silent and powerful drying system.
- Manual Registration Adjustments:
- Horizontal: + / -15 mm with locking.
- Vertical:+/- 15 mm.

The Drying System
Specially modified and easier to operate drying system. It can attain maximum temperature. Quick drying. Higherprinting speed. The only system of its kind in India.

Duplex System
2 unwind and rewind stations to print two different jobs at the same time.

Optional Features
- Web guide system.
- Tension control system.
- Auto Throw ON - Throw OFF for plate cylinder.
- Continuous rotation of inking rollers with hydraulic motors.
- Lubrication System.
- Doctor Blade System.
- Ceramics Anilox Rolls.
- Exhaust System.
- Motorised and Synchronised Rewinding stations.

Technical Specification
Web widths: 510 mm to 1510 mm
Print widths: 410 mm to 1410 mm
Printing Repeats: 230 mm to 1000 mm
Printing Possibilities: 6+0, 5+1, 4+2, 3+3
Printing Speed: 60 mtrs. / minute maximum
Power Requirement: Main Motor 5 - HP. AC
Blowers 3-HP. AC & 0.5 - HP. AC
Heating Load 22 kw

Floor Space** Length: 5.5 mtrs.
Width: 3 mtrs.
Height: 3 mtrs.
Weight: 5,500 kgs (approx)

For More Details Contact:
Perfect Printgraph Engineers LLP,
Passion, Innovation and Service.
Rakesh Parmar (Contact No: +919820042647)
Ravi More (Contact No: +91 9323948916)
Email ID: info@printgraph.in
Website: www.printgraph.in
