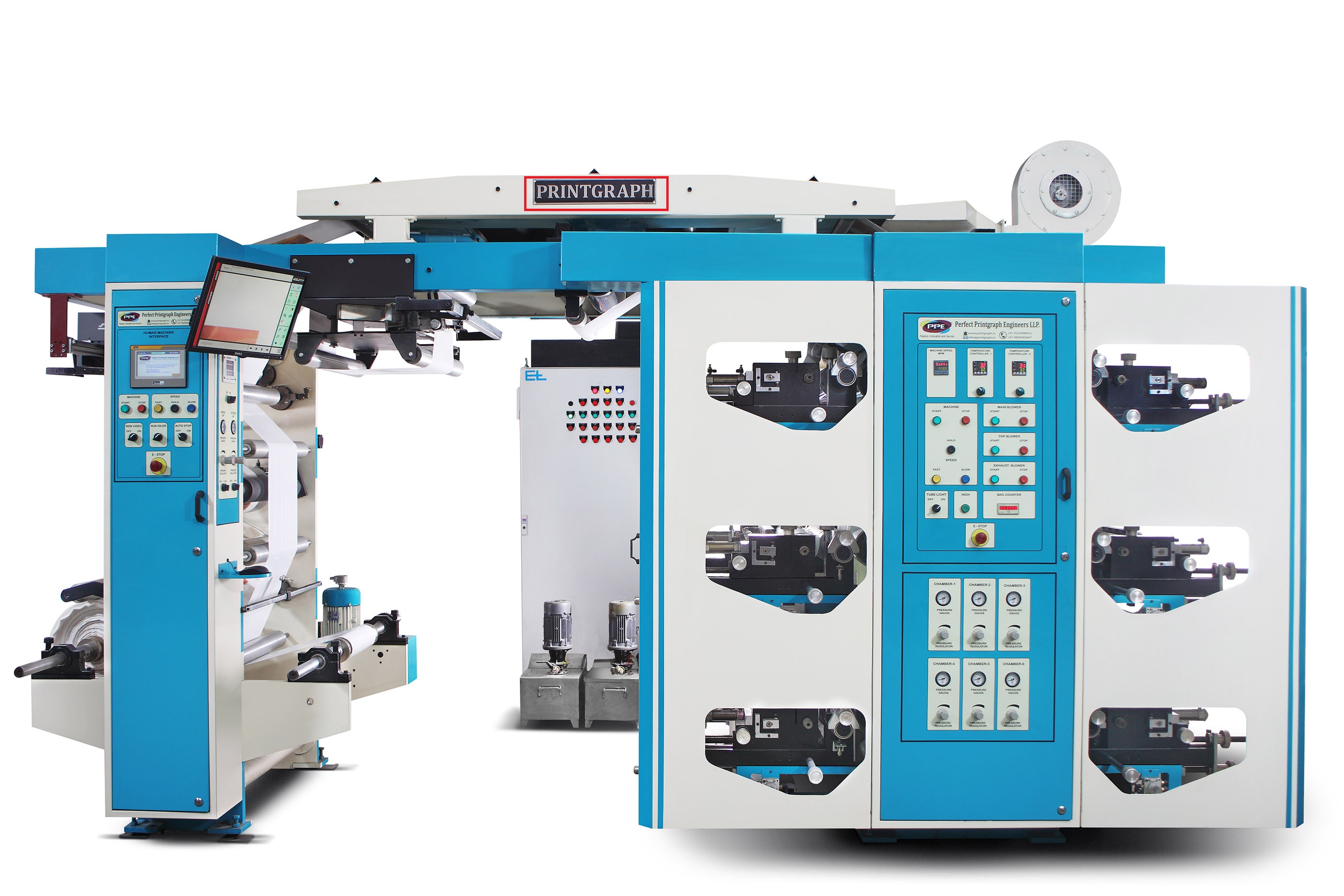

For Sale - PNE - 4399 - Compact Flexo Printing Press

Stack Type - Compact Super Print Series
Speed: 150 m.pm

Designed For
1. Shopping Bags.
2. Bakery Products.
3. Food Industries.
4. Oil & Dairy Industries.
5. Paper Industries.

Technical Specification

Type of Machine : High Speed Flexo Printing Press - Stack Type.

Series : Super Print Series

Number of Printing Station : 4 to 12 Color.

Web Width : 500 mm to 1500 mm.

Print Width : 400 mm to 1400 mm.

Printing Repeat : 300 mm to 800 mm.

Maximum Reel Outer Diameter at Unwind & Rewind Station : 600 mm

Maximum Reel Weight at Unwind & Rewind Station : 150 kgs.

Printing Possibilities : Variable as per no of color of Machine.

Mechanical Speed : 150 Meter per minute.

Printing Speed : 140 Meter per minute.

Power Requirement : Variable as per Machine.

Supply Voltage : 415 V, 3 Phase, 50 cles/sec, 4 wire or as required.

Floor Space Length/Width/Height : Variable as per machine.

Substrates Printable : LD, LLDPE, HM HDPE, POLYPROPYLENE, POLYESTER, PEARLISED
POLYESTER, B.O.P.P, PEARLISED B.O.P.P. THIN AND LAMINATED ALUMINIUM
FOILS ETC. FOAM SHEETS, PAPER

Features of the Machines:

• Compact Design

• 5 Drive Technology.

• Enclosed Chamber Doctor Blade System: For uniform and controlled ink supply on the Anilox Roll.

• Ceramic Coated Anilox Rolls: Higher mesh laser engraved Anilox Rollers for precise transfer of ink to achieve better and enhanced print quality.

• Motorised Ink Pumps for controlled circulation of ink between Ink Tank and Chamber Doctor Blade.

• Automatic Tension Control System: Asynchronous AC Servo Motor Drive Technology for precise tension Control and Load Cell feedback control provided on Unwind, Infeed, Outfeed and Rewind Station to maintain uniform tension throughout the entire roll.

• Automatic movement of the printing decks by precise circulating ball screws with motorised advancement.

• Opto Electronic Web Guiding System : Digitally controlled web guiding for precise guiding of web
• Silent and Powerful Drying and Exhaust System.

* The actual production speed will depend on the type, thickness, quality of the material to be printed, No. of Color, Inks, Photo Polymer Plates, Quality of Inks, Solvents and Operators skill.

** Depend upon the model.
*** Due to regular R & D, Speci?cation may undergo minor variations without prior notice.

Optional Features:

• Asynchronous Ac Servo Motor.

• Sleeve System with Flexo Printing Press.

• Pneumatic System: Provided for continuous rotation of Anilox Rollers and auto lifting of plate cylinders when machine is printing in OFF mode. This prevents drying of inks on the Anilox Roll.
