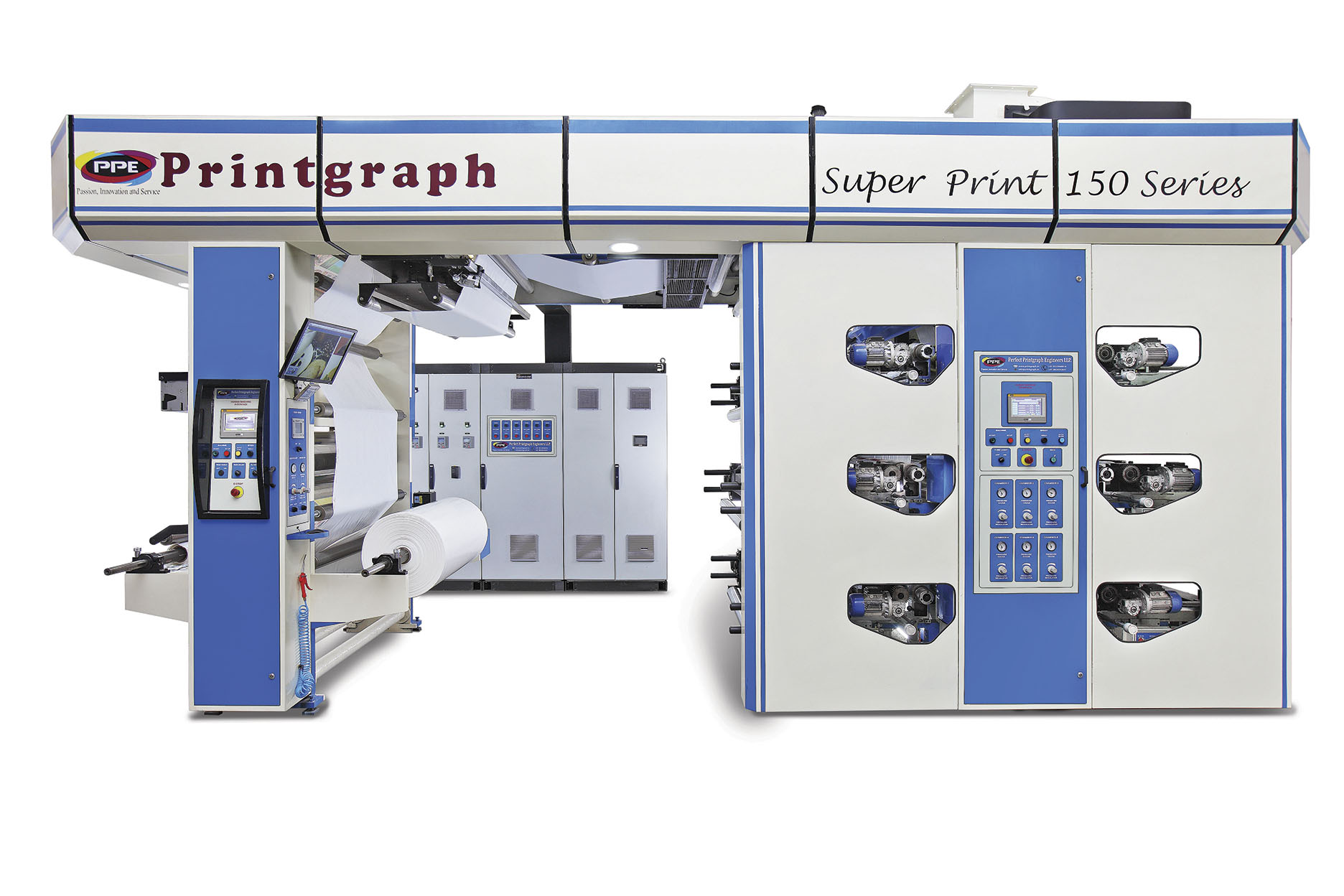

For Sale - PNE - 4401 - High Speed Sleeve Technology Flexographic Printing Press

Stack Type Sleeve Technology

Super Print 150 Series

Printing Speed : 150 m.p.m& 200 m.p.m

Designed For

1. Shopping Bags.
2. Bakery Products.
3. Food Industries.
4. Oil & Dairy Industries.
5. PaperIndustries.

Technical Specification

Type of Machine : High Speed Flexo Printing Press - StackType.

Series : Super Print 150 Series with Sleeve Technology

Number of Printing Station : 4 to 12 Color.

Web Width : 500 mm to 1500 mm.
Print Width : 400 mm to1400 mm.

Printing Repeat : 300 mm to 800 mm.

Maximum Reel Outer Diameter at Unwind & Rewind Station : 800mm

Maximum Reel Weight at Unwind & Rewind Station: 300 kgs.

Printing Possibilities : Variable as per no of color of Machine.

PrintingSpeed : 150 & 200 Meter perminute.
Power Requirement : Variable as per Machine.

Supply Voltage : 415 V, 3 Phase, 50 Cycles/sec, 4 wire or as required.

Floor Space Length/Width/Height : Variable as permachine.

Substrates Printable : LD,LLDPE,HMHDPE,POLYPROPYLENE,POLYSTER,PEARLISED AND LAMINATED ALUMINIUM FOILSETC., B.O.P.P, THINFOAM SHEETS.

Benefits of Sleeve System:

• No more heavy plate cylinders, no hoist.

• Less change over time between jobs.

• One man for machine change over.

• Saves Overhead Expenses.

• Promotes Better Productions.

FEATURES OF THE MACHINES:

- 5 Drive Technology with Asynchronous AC ServoMotor.

- Enclosed Chamber Doctor Blade System:For uniform and controlled ink supply on the Anilox Roll.

- Ceramic Coated Anilox Rolls:Higher mesh laser engraved Anilox Rollers for precise transfer of ink to achieve better and enhanced printquality.

- Motorised Ink Pumps:For controlled circulation of ink between Ink Tank and Chamber Doctor Blade.

- Automatic Viscosity Controller.

- AutomaticTension Control
System:Asynchronous AC Servo Motor DriveTechnology for precise tension Control and Load Cell feed back control provided on Unwind,Infeed,Outfeed and Rewind Station to maintain uniform tension through out the entire roll.

- Automatic movement of the printing decks by precise circulatingb all screws with motorised advancement.

- Opto Electronic Web Guiding System : Digitally controlled web guiding for precise guiding of web

- Motorised transversal printing register controlled via PLC.

- Pneumatic System : Provided for continuous rotation of Anilox Rollers and auto lifting of plate cylinders when machine is printing in OFF mode. This prevents drying of inks on the Anilox Roll.

- Human Machine Interface (Touch Screen Controls).

- Fully Digital Web Video System:Web inspection system, equipped with high quality color camera, quick zoom & split screen, mounted on Motorised traversebar to monitor complete printat alls peeds.

- Pneumatic Shaft:Provided on Unwind and Rewind Stations for quick and easy loading and unloading of the parentroll.

- Pneumatically Operated Nip Rollers:To maintai nuniform and precise tension at printing,In feed and out feed stations.

The actual production speed will depend on the type, thickness, quality of the material to be printed, No. of Color, Inks,Photo Polymer Plates, Quality of Inks, Solvents and Operators Skills.

- Silent and Powerful Drying and ExhaustSystem.

** Depend upon themodel.
*** Due to regular R &D, Speci?cation may undergo minor variations without priornotice.

SNAP

Sleeve for Plate Mounting.

SNAP

Sleeve Adaptor for Larger Repeat.
