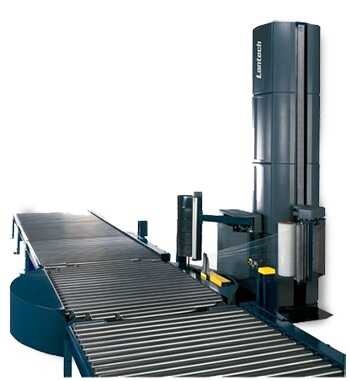

For Sale - PTP - 4860 - Stretch Wrapping Q Series Automatic

Exclusive QL Automatic Feature
Latest in film delivery technology
Same accurate pre-stretch
Twice the wrap force with the same film
Reduces film breaks to less than 1 per roll

Performance
Minimum Load Size:- 36"L x 36"W x 24"H
Production Speed:- 50-70 loads per hour
Maximum Load Size:- 54"L X 48"W X 92"H
Maximum Load Weight:- 4,000 lbs.

Load Handling
Turntable Drive:- TECF AC Motor
Turntable Rotation:- 1-25 RPM controlled by VFD

Film Delivery System
Film Delivery System:- Metered Film Delivery
Film Capacity:- 20" web with 10" diameter
Film Cut and Clamp:- Reach system/ hot wire cut
Pallet Grip:- Standard

Controls/ Electrical Data
HMI/Touchscreen:- Allen Bradley Panel View
Machine Generated Performance Data:- Standard
Enclosure:- NEMA 12, UL
Power:- 460VAC/3/60Hz
Control:- Allen Bradley PLC

Pneumatic Data
Air requirements:- 3-5 CFM at 60-80 PSI

Machine Shipping Weight
Approximate Shipping Weight:- 7,250 lbs.

Service Support
Warranty:- 3 years unlimited cycles
Technical Support:- 24 hrs/7 Days a week
