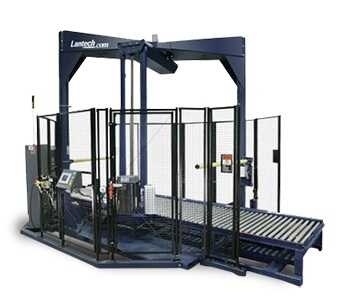

For Sale - PTP - 4861 - Stretch Wrapping Straddles Automatic

Performance
Production Speed:- up to 110 Loads per hour
Maximum Load Size:- 58"L x 58"W x 80"H
Minimum Load Size:- 36"L x 36"W x 24"H
Maximum Load Weight:- Conveyor Capacity

Load Handling
Rotation Drive:- TEFC AC Motor
Rotation Speed:- 1-40 RPM controlled by VFD

Film Delivery System
Pallet Grip:- Standard
Film Delivery System:- Standard Metered Film Delivery
Film Capacity:- 20" web with 10" diameter
Film Cut and Clamp:- Load Seeking Clamp 4.0

Controls/ Electrical Data
Enclosure:- NEMA 12, UL
Power:- 460VAC/3/60Hz
Control:- Allen Bradley PLC w/Ethernet
Machine Generated Performance Data:- Standard
HMI/Touchscreen:- Allen Bradley Panel View

Pneumatic Data
Air requirements:- 3-5 CFM at 60-80 PSI

Machine Shipping Weight
Approximate Shipping Weight:- 4,300 lbs.

Service Support
Warranty:- 3 years unlimited cycles
Technical Support:- 24 hrs/7 Days a week
