For Sale - SC - 615
Reference Numbers
SC - 615Location
USA

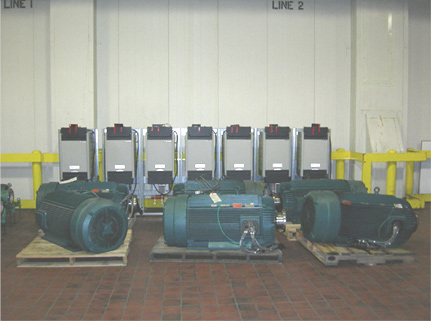

300 hp AC Motor with Allen Bradley Inverter:
1) Motor is equipped with 460 volt, 1794 rpm, and 345 Amps
- 60 hertz, frame size 449TS.
- Has 11" centerline height.
2) Inverter is an Allen Bradley Powerflex model 700H inverter, frame #10.
3) At 480 volt AC input, the following specifications apply:
- Normal duty power 350 hp
- Heavy duty power 300 hp
- Ambient temperature ND/HD 40/40
- Input at 3 phase 47-63 hertz
- AC voltage range 432-528
- Amps ND/HD 444/388
- Output at 3 phase 0-320hz
- AC voltage range 0-460
- Base: 60 Hz
4) At 400 volts specifications are as follows:
- Normal duty power 250 KW
- Heavy duty power 200 KW
- Ambient temperature ND/HD 40/40
- Input 3 phase 47-63 hertz
- AC voltage range 342-440
- Amps ND/HD 463-388
- Output at 3 phase 0-320 Hz
- AC voltage range 0-400
- Base Hz 50
(For picture, please see next page)
