Required - TTE - 3657 - Izod / Charpy Impact Tester

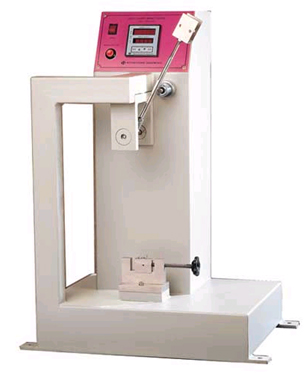

1) Computerised Izod / Charpy Impact Tester as per ASTM D - 256 to test impact resistance of plastics. The test indicates the energy required to break standard test specimen.

Specification:
- Capacity: Up to 21.68 Joules
- Release angle of pendulum: 150 degree
- Range of four scales:
a. 0-2.71 Joules, 0-5.42 Joules,
b. 0-10.84 Joules and 0-21.68 Joules.
- Minimum resolution on scale:
a. 0.02 Joule, 0.05 Joule
b. 0.1 Joule and 0.2 Joule respectively.
- Paint: Powder coated
- Powder: 230 Volts, 50 Hz, single phase
- Direct display through microcontroller: Impact energy in joules.
- Graphic display and printout through PC: Impact energy Vs Angular displacement graph and numeric reports consisting of values for impact strength as per ASTM standard and IS standard in different units could be obtained by attaching a printer to the PC.

2) Analogue Izod / Charpy Impact Tester as per ASTM D - 256 to test impact resistance of plastics. The test indicates the energy required to break standard test specimen.

Specification:
- Capacity: Up to 21.68 Joules.
- Release angle of pendulum: 150 degree
- Range of four scales: 0-2.71 Joules, 0-5.42 Joules, 0-10.84 Joules and 0-21.68 Joules.
- Minimum resolution on scale: 0.02 Joule, 0.05 Joule, 0.1 Joule and 0.2 Joule respectively.
- Paint: Powder coated

(For images, please see next pages)
