Required - TTE - 3245 - Melt Pressure Transducers - Melt Monitors

Dynisco Range of Melt Monitors:
1) RMM:
- Pressure ranges: 0 - 5,000 psi to 0 - 15,000 psi
- Output: Local display
- Accuracy: +/- 1.0 percent FSO
- Standard process connection: 1/2-20 UNF
- Standard electrical connection: 3 pin male

2) FMM:
- Pressure ranges: 0 - 5,000 psi to 0 - 15,000 psi
- Output: Local display
- Accuracy: +/- 1.0 percent FSO
- Standard process connection: 1/2-20 UNF
- Standard electrical connection: 3 pin male

Features:
- Dual 5-digit display
- Peak display function and digital auto-zero
- Terminations via locking connector
- 1/2-20 UNF or M18 mounting configurations
- Accuracy better than +/- 1.0 percent
- Customer defined engineering units

Benefits:
- Melt pressure and optional temperature displayed
- Easy to use and configure
- Ease of installation and removal
- User selectable process connections
- Accurate over a wide range of temperatures
- Available in PSI, bar, MPa or kg/cm2

Description:

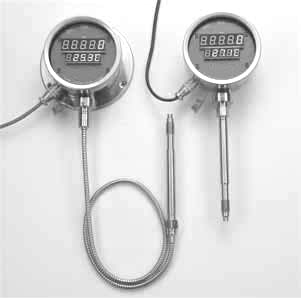

The Dynisco Melt Monitor Indicator Series is a melt pressure transducer with integral digital display. An optional temperature measurement is available. The all welded stainless steel construction has been designed for the rigorous environments of the plastics processor. Standard features, including the digital auto-zero and peak display function provides easy operation with an accurate pressure measurement. With the optional built in temperature sensor, the display is capable of providing both process pressure and temperature readings simultaneously.

Specifications:
Performance characteristics:
- Ranges: 5,000 psi, 10,000 psi and 15,000 psi
- Accuracy:
a. Pressure: +/- 1.0 percent
b. Temperature: +/- 0.5 percent
- Sampling speed: 50 mS
- Power supply: Universal 110/220 Vac or 24 Vdc (optional)

- Displays: 5-digit LED's, 0.5" Primary and 0.4" Secondary
- Pressure: PSI, bar, MPa or kg/cm2
- Resolution: 1 PSI, 0.1 bar, 0.01 MPa or 0.1 kg/cm2
- Temperature: Degree C or Degree F
- Resolution: 0.1 Degree C or 0.1 Degree F

Temperature and mechanical characteristics:
- Electronics temperature range: 32 to 158 Degree F (0 to 70 Degree C)
- Maximum diaphragm temperature: 750 Degree F (400 Degree C)
- Humidity: Less than or equal to 80 percent
- Optional temperature compensation: 70 to 615 Degree F (20 to 325 Degree C)
- Electrical termination: 1 - 3 pin connector (included)
- Weight: 2.5 to 3.5 pounds

3) RMMX:
- Pressure ranges: 0 - 500 psi to 0 - 20,000 psi
- Output: Local display and analog Output
- Accuracy: +/- 0.5 percent FSO
- Standard process connection: 1/2-20 UNF
- Standard electrical connection: Two 7 pin male

4) FMMX:
- Pressure ranges: 0 - 500 psi to 0 - 20,000 psi
- Output: Local display and analog Output
- Accuracy: +/- 0.5 percent FSO
- Standard process connection: 1/2-20 UNF
- Standard electrical connection: Two 7 pin male

Features:
- Dual 5-digit display
- Peak display function and digital auto-zero
- Programmable alarm relays
- Optional 4 - 20 mA, 0 - 10 Vdc retransmission
- Accuracy better than +/- 0.5 percent
- Customer definable engineering units

Benefits:
- Melt pressure and optional temperature displayed
- Alarm set point can be displayed for pressure
- Manual and automatic reset and early warning
- Send high level signals to DCS or PLC
- Accurate over a wide range of temperatures
- Available in PSI, bar, MPa or kg/cm2

The Dynisco Melt Monitor Alarm Series is a melt pressure transducer with an integral digital display. An optional temperature measurement is available. The Melt Monitor has been designed for the rigorous environments of the plastics extruder. Standard features, including the digital auto-zero and peak display function provides easy operation with an accurate pressure measurement. With the optional built in temperature sensor, the display is capable of providing both process pressure and temperature simultaneously. The Melt Monitor comes standard with two programmable alarm relays. The alarms can be programmed for either manual or automatic reset and early warning indication. In addition, these models are be provided with two digital inputs for remote reset and remote zero, as well as 4 - 20 mA, 0 - 10 Vdc and 1 - 5 Vdc user selectable, retransmission of the pressure signal.

Performance characteristics:
- Ranges: 0 - 500 to 0 - 20,000 psi
- Accuracy:
a. Pressure: +/- 0.5 percent
b. Temperature: +/- 0.5 percent
- Sampling speed: 50 mS
- Power supply: Universal 110/220 Vac or 24 Vdc (optional)
- Displays: 5-digit LED's, 0.5" primary and 0.4" secondary
- Pressure: PSI, bar, RMA or kg/cm2
- Resolution: 1 PSI, 0.1 bar, 0.01MPa or 0.1 kg/cm2
- Temperature: Degree C or Degree F
- Resolution: 0.1 Degree C or 0.1 Degree F
- LED's: Alarm 1, Alarm 2, IN (Reset), A/B (MODBus)

Temperature and mechanical characteristics
- Electronics temperature range: 32 to 158 Degree F (0 to 70 Degree C)
- Maximum diaphragm temperature: 750 Degree F (400 Degree C)
- Humidity: Less than or equal to 80 percent
- Optional temperature compensation: 70 to 615 Degree F (20 to 325 Degree C)
- Electrical termination: 2 - 7 pin connectors (included)
- Alarms: (2) -1-SPDT + 1-SPST relay, 110 - 220 Vac
- Alarm range resolution: 00001 - full scale value
- Digital inputs: remote -zero and remote-reset
- Retransmission outputs: 4 - 20 mA, 0 - 10 Vdc, 1 - 5 Vdc
- Communications: RS-485 MODBus - RTU
- Weight: 2.5 to 3.5 pounds

Dynisco manufactures a wide variety of robust 3.33 mV/V melt pressure transducers, which are designed specifically for harsh and rugged environments of the extrusion and Polymer Processing Industries. Select from one of the many robust and reliable products offered on the market today. No matter what the pressure requirement, whether it is for safety reasons or control to help tighten product specifications, Dynisco can supply it.

(For images, please see next pages)
