Required - TTE - 3253 - Melt Pressure Transducers - PT460XL Series

Dynisco Range of PT460XL Series:
1) PT460XL:
- Pressure ranges: 0 - 3,000 psi to 0 - 10,000 psi
- Output: 3.33 mV/V
- Accuracy: +/- 1.0 percent FSO
- Standard process connection: 1/2-20 UNF
- Standard electrical connection: Bendix PT02A-10-6P

2) PT462XL:
- Pressure ranges: 0 - 3,000 psi to 0 - 10,000 psi
- Output: 3.33 mV/V
- Accuracy: +/- 1.0 percent FSO
- Standard process connection: 1/2-20 UNF
- Standard electrical connection: Bendix PT02A-10-6P

3) TPT463XL:
- Pressure ranges: 0 - 3,000 psi to 0 - 30,000 psi
- Output: 3.33 mV/V
- Accuracy: +/- 1.0 percent FSO
- Standard process connection: 1/2-20 UNF
- Standard electrical connection: Bendix PT02A-10-6P

The PT460XL Series transducer is a +/- 1.0 percent sensor ideal for abrasive and/or corrosive melt pressure applications requiring simple installation, repeatability and reliability. The PT460XL transducers provide the industry standard 3.33 mV/V signal designed to work with most pressure indicators. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT460XL features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of electrical connections.

Features:
- Accuracy better than +/- 1.0 percent
- Inconel diaphragm
- Superior temperature stability
- Patented sensing element
- 0 - 3,000 to 0 -30,000 psi
- Internal 80 percent shunt calibration

Benefits:
- Reliable, repeatable pressure measurements
- Superior abrasion and corrosion resistance
- Ideal for high temperature processes
- Superior durability
- Wide variety of pressure ranges
- Easy to calibrate with local indicator

Specifications:
Performance characteristics:
- Output: 3.33 mV/V +/- 2.0 percent
- Input voltage: 10 Vdc recommended, 12 Vdc maximum
- Combined error: +/- 1.0 percent FSO,
(Including linearity, repeatability and hysteresis)
- Repeatability: +/- 0.2 percent FSO
- Configuration: Four-arm bonded foil Wheatstone bridge strain gage
- Bridge resistance: Input: 345 Ohms minimum
- Output: 350 Ohms +/- 10 percent
- Over pressure: 2 X FSO or 35,000 psi whichever is less
- Zero Balance: +/- 10 percent FSO
- Internal shunt calibration (R-Cal): 80 percent FSO +/- 1 percent
- Insulation resistance: 1,000 megohms at 50 Vdc

Temperature and mechanical characteristics:
- Max diaphragm temperature: 750 Degree F (400 Degree C)
- Zero shift (due to temperature change): <20 psi/100 Degree F Typical (<36 psi/100 Degree C)
- Electronics operating temperature: 250 Degree F (121 Degree C)
- Zero shift due to temperature change: +/- 0.05 percent FS/Degree F max (+/- 0.10 percent FS/Degree C max)
- Sensitivity shift due to temperature change: +/- 0.02 percent FS/Degree F max (+/- 0.04 percent FS/Degree C max)
- Mounting torque: 500 inch/lbs. maximum
- Standard wetted parts: Inconel 718

4) PT465XL:
- Pressure ranges: 0 - 3,000 psi to 0 - 15,000 psi
- Output: 3.33 mV/V
- Accuracy: +/- 0.5 percent FSO
- Standard process connection: 1/2-20 UNF (Jam Bushing)
- Standard electrical connection: Bendix PT02A-10-6P

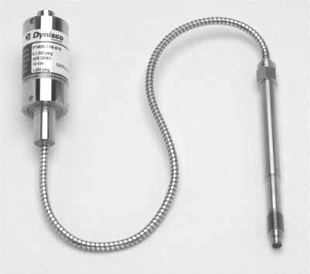

The PT465XL measures polymer melt pressure in an injection molding machine nozzle or a hot runner. A protective flexible armored cable extends from its electronic housing to the tip for unmatched strength and increased life. Located in the nozzle, the PT465XL provides a very accurate measurement of the pressure of the plastic melt entering the mold.

Features
- 1" flex bend radius
- Inconel 718 diaphragm
- Free spinning jam nut
- Better than +/- 0.5 percent accuracy
- Up to 750 Degree F (400 Degree C) melt temperatures

Benefits:
- Minimum mounting space design
- Extra abrasion/corrosion resistance
- Ease of installation
- Accurate measurement
- Ideal for high temperature processes

Performance Characteristics:
- Ranges (psi): 0 - 3,000, 0 - 5,000, 0 - 7,500, 0 - 10,000, 0 - 15,000, 0 - 20,000, 0 - 30,000
- Accuracy: +/- 0.5 percent full scale
- Repeatability: +/- 0.2 percent FSO
- Mounting torque: 500 inch - lbs. maximum
- Maximum pressure: 2 x range or 35,000 psi, whichever is less
- Material in contact with pressure media: Inconel 718
- Weight: 1.5 lbs

Electrical Characteristics:
- Configuration: Four active arm bonded Wheatstone bridge strain gage
- Bridge resistance: Input: 345 Ohms minimum; Output: 350 Ohms +/- 10 percent
- Full scale output: 3.33 mV/V +/- 2.0 percent
- Zero balance: +/- 10 percent full scale
- Excitation: 10 Vdc recommended, 12 Vdc maximum
- Internal shunt calibration (R-Cal): 80 percent FSO +/- 1.0 percent
- Insulation resistance: 1,000 megohms at 50 Vdc

Temperature characteristics:
- Transducer diaphragm:
a. Maximum diaphragm temperature: 750 Degree F (400 Degree C)
b. Zero shift due to temperature change: <20 psi/100 Degree F maximum
(36 psi/100 Degree C)

- Electronics housing:
a. Maximum temperature: 250 Degree F (121 Degree C)
b. Zero shift due to temperature change: +/- 0.05 percent full scale / Degree F maximum (+/- 0.10 percent full scale/Degree C)
Sensitivity shift due to temperature change: +/- 0.02 percent full scale / Degree F maximum (+/- 0.04 percent full scale/Degree C)

5) PT467XL:
- Pressure ranges: 0 - 3,000 psi to 0 - 30,000 psi
- Output: 3.33 mV/V
- Accuracy: +/- 1.0 percent FSO
- Standard process connection: 1/2-20 UNF (Jam Bushing)
- Standard electrical connection: Bendix PT02A-10-6P

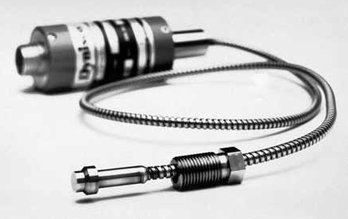

Model PT467XL features an exposed capillary, which allows 1/16" radius bends for mounting in tight places. Like the PT460XL, it has a patented sensing element, a heavy duty Inconel diaphragm and superior thermal compensation.

Features
- Better than +/- 1.0 percent accuracy
- Inconel diaphragm
- Superior temperature stability
- Patented sensing element
- Exposed, bendable capillary
- Internal 80 percent shunt calibration

Benefits
- Reliable pressure measurement
- Extra abrasion/corrosion resistance
- Ideal for high temperature processes
- Superior durability
- Fits in tight locations
- Easy set - up

Specifications:
Performance characteristics:
- Ranges (psi): 0 - 3,000, 0 - 5,000, 0 - 7,500, 0 - 10,000, 0 - 15,000, 0 - 20,000, 0 - 30,000
- Accuracy: +/- 1.0 percent FSO
- Repeatability: +/- 0.2 percent FSO
- Mounting torque: 500 inch - lbs. maximum
- Maximum pressure: 2 x full range or 35,000 psi (whichever is less)
- Material in contact with pressure media: Inconel 718
- Weight: 1.5 lbs

Electrical characteristics:
- Configuration: Four active arm bonded Wheatstone bridge strain gage
- Bridge resistance: Input: 345 Ohms minimum; Output: 350 Ohms +/- 10 percent
- Full scale output: 3.3 mV/V +/- 2 percent
- Zero balance: +/- 10 percent full scale
- Excitation: 10 Vdc recommended, 12 Vdc maximum
- Internal shunt calibration (R-Cal): 80 percent FSO +/- 1.0 percent
- Insulation resistance: 1,000 megohms at 50 Vdc

Temperature Characteristics
- Transducer diaphragm:
a. Maximum diaphragm temperature: 750 Degree F (400 Degree C)
b. Zero shift due to temperature change: <20 psi/100 Degree F maximum (<36 psi/100 Degree C)

- Electronics housing:
a. Maximum temperature: 250 Degree F (121 Degree C)
b. Zero shift due to temperature change: +/- 0.05 percent full scale/Degree F maximum (+/- 0.10 percent full scale/Degree C)
c. Sensitivity shift due to temperature change: +/- 0.02 percent full scale/Degree F maximum (+/- 0.04 percent full scale/Degree C)

Dynisco's manufactures a wide variety of robust 3.33 mV/V melt pressure transducers, which are designed specifically for harsh and rugged environments of the extrusion and Polymer Processing Industries. Select from one of the many robust and reliable products offered on the market today. No matter what the pressure requirement, whether it is for safety reasons or control to help tighten product specifications, Dynisco can supply it.

(For images, please see next pages)
