| FEATURES | OPTIONS | ||
| Web Widths |
510mm to 1510mm |
Forward inching facility (Jogging). | Web Guide system. |
| Print Widths |
410mm to 1410mm | Auto stop for Web break. | Tension Control System. |
| Printing Repeats |
230mm – 1000mm | Temperature controller for heater ensures saving in power. | Auto throw on throw off for plate cylinder. |

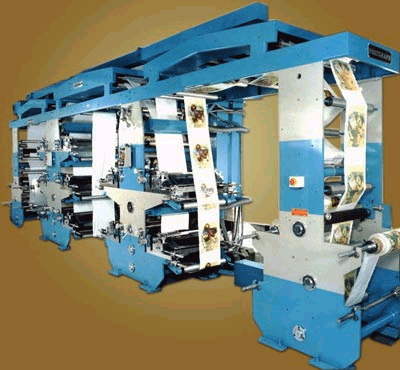

| Printing Possibilities | 4+0, 3+1, 2+2.(4 color) 6+0, 5+1, 4+2, 3+3.(6 color) 8+2, 7+3, 6+4, 5+5.(10 color) |
Individual air controller for each station. | Continues rotation of inking rollers with hydraulic motors. |
| Printing Speed * | 70mtrs/minute max. | Control panel with thyristor drive. | Lubrication system. |
| Power Requirement ** |
Main Motor: 5HP DC. & 3HP DC. 2HP Blowers. 2 Nos. 3HP Blower. 1 No 24 KW. Heating Load |
Impression rollers and Anilox Rollers are dynamically balanced, ground and hard chrome plated. | Doctor Blade system. |
| Floor Space ** | Length: 9.2mtrs. Width: 2.5mtrs. Height: 4mtrs. |
Helical gears for reduced play, smooth movement and long life. | Ceramic Anilox Rolls. |
| Weight ** | 9,500 Kg. (Approx). |
Silent and powerful drying system. | Exhaust system. |
| Manual Registration Adjustments: | Motorised and synchronized Rewinding stations. | ||
| Horizontal: | +/- 15mm with locking. | ||
| Vertical: | +/- 15mm. | ||
| Due to Constant Research Implementation, Specifications
may have minor variations.
*The actual printing speed will depend on the type, thickness, quality of the material to be printed, number of colors, inks, photo polymer plates, solvents and operator’s Skills. ** Depends on the model. |
|||
 |
|||
