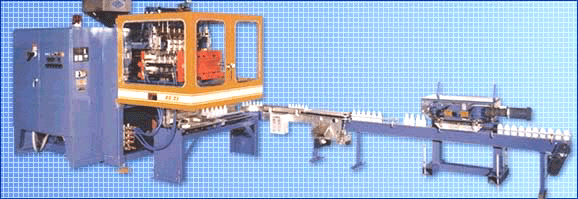

| Reciprocating Screw Blow Molding Machine |
* Full featured machine for dairy bottle production
and custom molding applications * 24" or 32" wide clamp options * Toggle clamp for rapid movement, high tonnage * 100% unobstructed access to clamp area for fast, easy change-overs |
* Adjustable extruder height allows for proper installation of
BOTH short and long molds |
| GENERAL: * 11,000 pounds net weight * 15 tons chilled water required, molds and machine * 40 CFM @ 100 PSI compressed air required |
| HYDRAULIC-MODULAR POWER UNIT: * Rexroth hydraulics with proportional control valves * 75 HP electric motor, 230/460 volt, 3 phase, 60 Hz, 1800 RPM * 60 GPM hydraulic pump * 150 gallon reservoir |
| CLAMP UNIT: * Usable clamp area 24" wide x 16" tall * *Optional, usable clamp area 32" wide x 14" tall * Maximum opening 30", minimum shut height 9.0" * 15" maximum daylight * Toggle clamp mechanism * 50 ton clamp force * Optional side shift 6.0", for 24" side clamp only |
| EXTRUDER: * 2.5" (63 mm) diameter, 24/1 (L/D) ratio reciprocating screw * General purpose screw with 200 lbs/hr for HDPE * High efficiency screw with 275 lbs/hr for HDPE * Adjustable extruder height for die/mold settings * 2.25 pounds (1 kg) maximum single shot * Hydraulic drive with radial piston motor, 0-150 RPM |
| ELECTRICAL: * 230/460 dual voltage heater bands * Solid state PLC with file storage for multiple jobs * Mitsubishi touch-pad data access unit * 3-zone extruder temperature controls, fan cooling * Individual die head temperature controls * 140 full load amps @ 460 volts |
 |
